FoxAlien

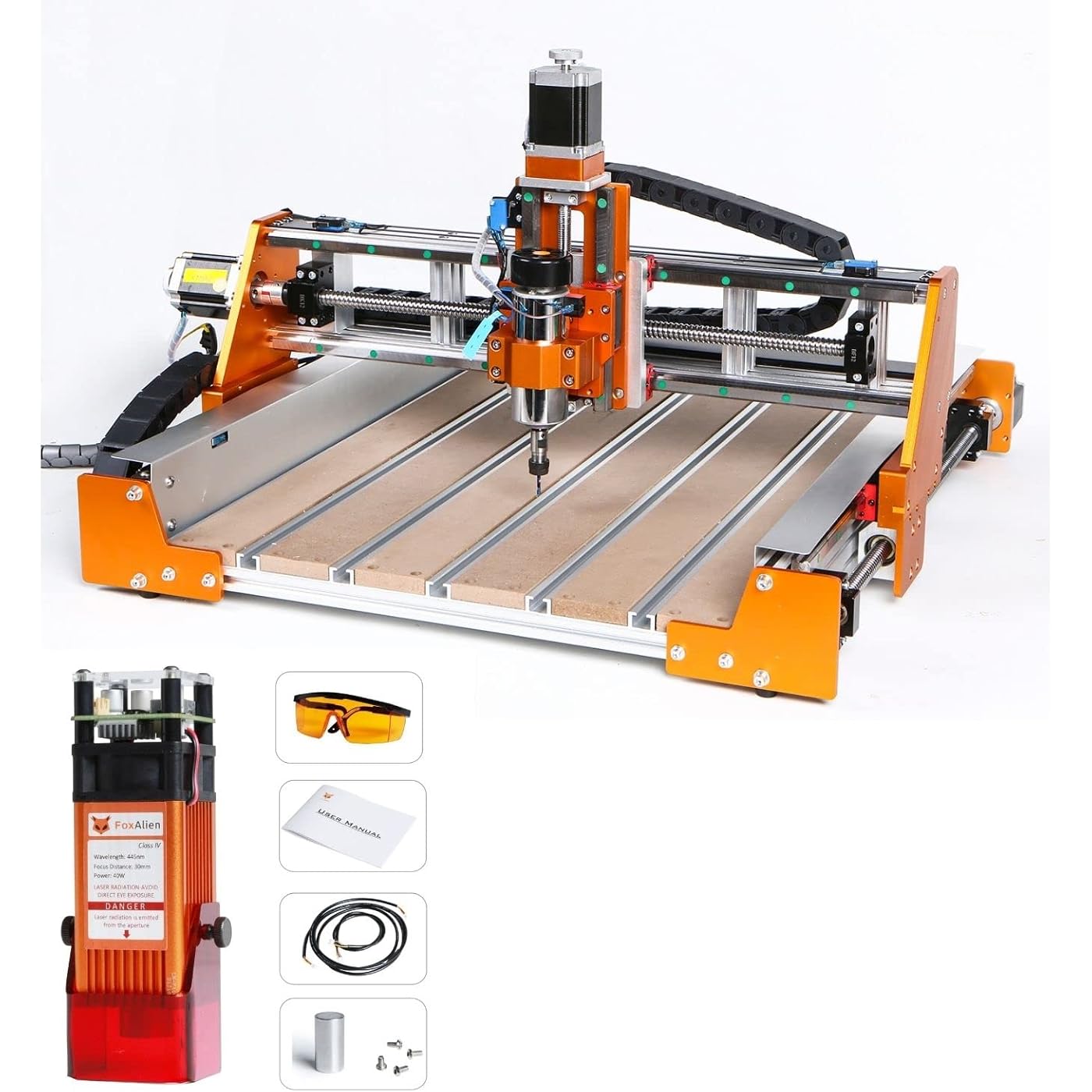

CNC Router Machine Vasto and 40W Laser Bundle, 3-Axis Linear Rails and Bearings 400W Spindle Engraving Milling Machine for Wood Metal Acrylic MDF Nylon Carving Cutting

    • Based on 3 reviews
Condition: New
Checking for product changes

Notify me when this product is back in stock

$3,499.00 Why this price?

Buy Now, Pay Later

As low as / mo
  • – Up to 36-month term with PayTomorrow
  • – No impact on credit
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout. Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Selected Option

Free shipping on this product

This item is eligible for return within 30 days of receipt

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: Unavailable
Fulfilled by FoxAlien Official
Available payment plans shown during checkout

Color: Vasto+40W Laser


Features

  • [Industrial-level Upgrade] The Vasto CNC machine uses HG-15 linear rails and bearings and ball screws in X, Y and Z axis. All-metal body structure makes it super stable and steady for woodworking and aluminum engraving.
  • [400W Spindle &Clamps for Router] This machine comes with a 400W spindle, which is more powerful and efficient for wood, acrylic, aluminum, MDF, carbon fiber etc. engraving. Extra Z-clamps in 69mm and 65mm diameter are included, which are for upgrading to routers.
  • [DM542 Independent Drivers] Four DM542 independent drivers are built in the controller box. Independent drivers can improve and unleash the potential of the stepper motors.
  • [T-slot Hybrid Worktable] The hybrid worktable offers multiple work holding options. The working area is 15.75x 15.75x 3.7(400mm x 400mm x 95mm).
  • [Easy to Assemble &Use] Main parts are pre-assembled; it takes about 30-45 minutes to assemble the machine. The machine supports all Grbl software. It is compatible with FoxAlien offline controller (NOT included).
  • [Support Laser] This bundle includes a FoxAlien Fix-focus 40W laser kit. It can fit into the z clamp directly. Focusing distance is 40mm. Cutting efficiency increases by 100% compared to the 20W.

Description

Vasto - Hardware Specification: Working Table: T-slot Hybrid Table Cutting Area: 15.75"x15.75"x3.7" Footprint Dimensions: 31.5"x31.5"x19.7"/80cm x 80cm x 50cm Spindle: 400W X Axis: HG-15 Linear Rails & 16mm Ball Screws Y Axis: HG-15 Linear Rails & 16mm Ball Screws Z Axis: HG-15 Linear Rails & 12mm Ball Screws Stepper Motors: Nema23 Independent Driver: DM542 Machine Structure Material: All Metal40W Laser - Specification:Please wear laser goggles during usage, avoid touching the laser directly to the eyes and skin. In order to avoid unexpected accidents happens, please stay with the machine while the laser module is working. Heatsink material: aluminum Recommend Focus Distance for Cutting: 40mm Electric Output power: 40W Laser Output power: 10W Wave length: 445nm blue laser Voltage: 12V Current: 3.3A Beam shape: Dot (focus can not adjustable) Working temperature: -40~75℃ Can engrave: MDF/ Balsa/ Paper / Wood/ Fabric/ Plastic/ Leather/ Plywood/ Foam Paper/ Anodized AluminumCan not engrave: Metal/ Glass/ PCB/ Transparent MaterialPackage List 1x Vasto CNC router (half-assembled in 3 boxes) 1x T-slot Hybrid Table 1x Controller 2x Set of engraving bits (10pcs/set) 1x USB cable 1x Power cord 1x Box of screws and tools 1x User manual 1x 40W laser kit


Brand: FoxAlien


Power Source: ac/dc


Voltage: 12 Volts


Manufacturer: ‎FoxAlien


Part Number: ‎Vasto


Item Weight: ‎110 pounds


Package Dimensions: ‎33.46 x 27.95 x 10.24 inches


Country of Origin: ‎China


Item model number: ‎Vasto


Color: ‎Vasto+40w Laser


Power Source: ‎ac/dc


Voltage: ‎12 Volts


Included Components: ‎1/8-Inch Collet


Batteries Required?: ‎No


Date First Available: October 30, 2020


Frequently asked questions

This product is currently out of stock. Please check back later for shipping info.

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • Afterpay Financing
  • PayTomorrow Financing
  • Financing through Apple Pay
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • You literally can't get better at this price point
I bought this from the foxalien site because of the generous $1,000 promotional deal I'll start off with the good aspects: 1. Just like other people have said, linear rails, beefy ball screws, and super rigid design, it's great 2. Combined this with a 1.5kW spindle, and it handles it like a charm 3. GRBL settings and calibrations were great, usually if you're making your own CNC, you've gotta configure a ton of settings, but the settings that the vasto is shipped with are on point. In fact they're too conservative, I noticed mine was set with a top speed of 1500mm/min, but you can run it much faster without missing any steps! 5000mm/min! 4. Super easy to assemble and incredibly smooth motion, cuts exceptionally well Bad things: 1. On a test cut, I noticed that my floor finish was strange, it would vary depending on where i had my workholding. I remembered that on youtube, someone had mentioned the bed would deflect with weight, and he highly recommended cross bracing for rigidity. I knew my workholding was solid, but I decided to test for myself, and he was right. From an economic perspective, it makes sense because for a $2k USD cnc mill, a good fixture plate that's 400x400mm is going to cost a minimum of $1000. At the price point, the bed that it comes with does a good job for wood or light things, but if you can afford it, remove the bed and upgrade to a quality metal fixture plate There's nothing else wrong with this machine that comes to mind, and the bed thing isn't even a big deal because i'm still getting great cuts. Highly recommended and this is literally the best at the price point!! ... show more
Reviewed in the United States 🇺🇸 on August 29, 2022 by Chris Tran
    • Linear Rails, Ballscrews, No belts!
Review Image by Justin Justin
Review Image by Justin Justin
Review Image by Justin Justin
Review Image by Justin Justin
Review Image by Justin Justin
Review Image by Justin Justin
Review Image by Justin Justin
Very impressed with the Vasto! Shipped in 3 boxes, my first impressions upon opening them and seeing the majority of stuff pre-assembled, was very good. Seeing the linear rails, 16mm ballscrews, etc. Made me feel the quality of the machine is good. The Gantry has 10mm thick aluminum plates that bolt onto 10mm thick plates on the Y axis. Making for 20mm of aluminum mounting to the Y axis linear blocks. This machine was built very rigid! I'm able to cut aluminum easily with a 1/4" single-flute mill. I did put my own spindle on the machine, which allowed me to do 16mm deep cuts in aluminum given I respect the feedrate. It's pretty easy to do cuts in aluminum without chatter if you know your speeds/feeds. Very easy to come back around with a 0.2mm finish pass and get really really shiny cuts! I bought this machine for wood/plastic, not expecting it to do aluminum. Honestly after seeing the results, I'm looking forward to cutting more! I will say. Treat it as any CNC machine. Even if you buy a 20K CNC mill. The first thing you should do before running it, is alignments and tramming. Yes, the machine will cut freshly put together and can do the job. But if you're after precision cutting, I highly recommend aligning stuff. The bed, stock, does flex. I didn't find this to be a problem for "crafts" but did find it to be a problem for ripping deep and fast into hard materials. I dont really deem this a reason to mark-down my review, as you can work with it. I didn't personally notice any issues until I was trying to do 20mm cuts into HDPE at 1500mm/min. Overall. I'm very happy with this purchase. It's a very solid/rigid machine as illustrated with the results of my aluminum cutting. The cuts sounded great, coming from a 7-year seasoned aerospace machinist. Pretty accustomed to what a good cut sounds like by now. ... show more
Reviewed in the United States 🇺🇸 on March 14, 2022 by Justin Justin
    • Best desktop CNC out!
Review Image by Tommy Tommy
Review Image by Tommy Tommy
Review Image by Tommy Tommy
This cnc is hands down the best desktop cnc I have used. I run a successful RC car parts manufacturing business with this machine. We cut carbon fiber and aluminum on it daily and have owned the machine for about 6 months. The machine has a ton of power and has no issues cutting anything I want. The precision and cutting capabilities of this machine is incredible. Don’t hesitate to buy you won’t regret it. Im actually thinking about buying another one. ... show more
Reviewed in the United States 🇺🇸 on July 1, 2022 by Tommy Tommy
