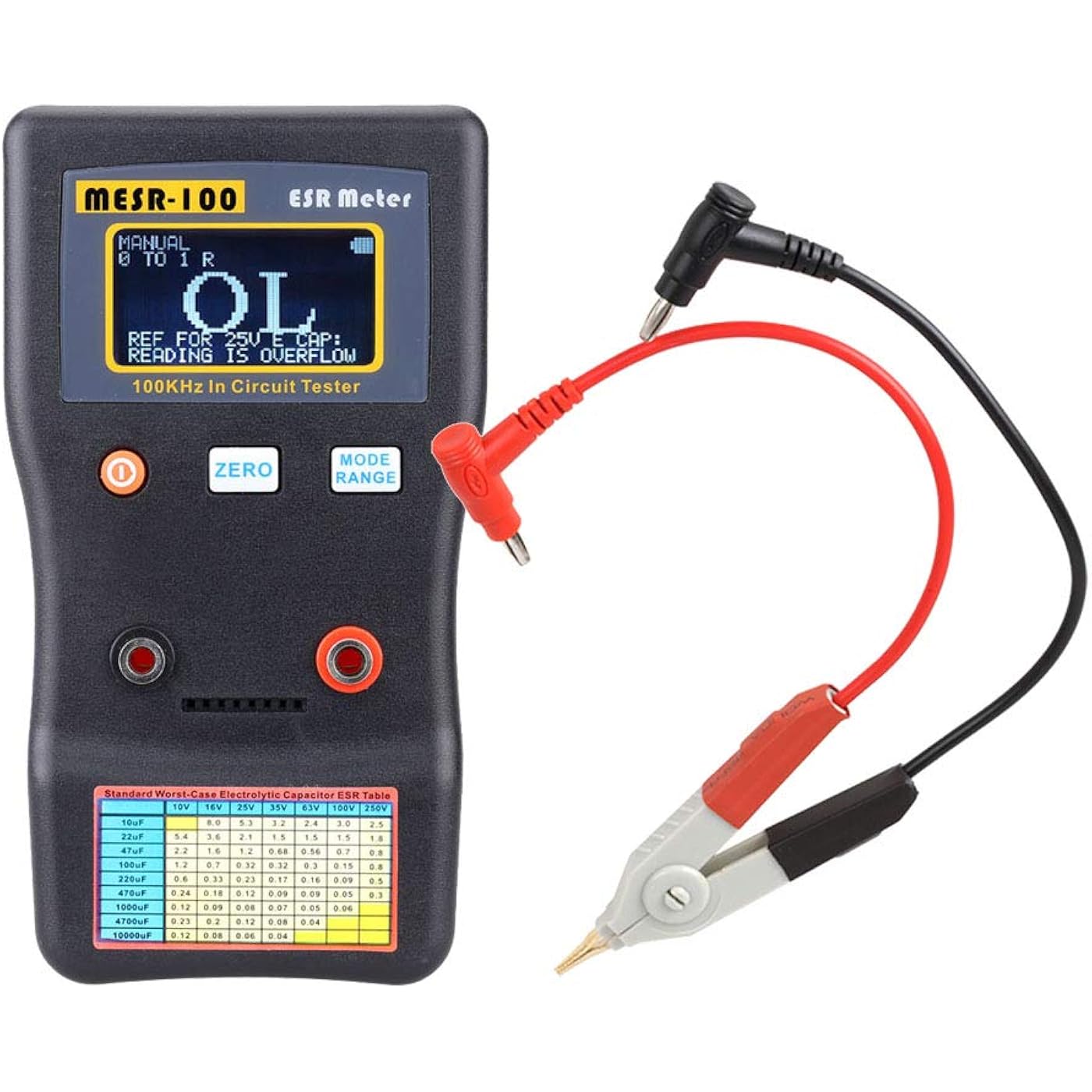

Topuality MESR-100 ESR Capacitance Ohm Meter Professional Measuring Capacitance Resistance Capacitor Circuit Tester with s-m-d Test Clip

  • Based on 0 reviews
Condition: New
Checking for product changes

Buy Now, Pay Later


As low as $10.49 / mo
  • – 6-month term
  • – No impact on credit
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout. Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Free shipping on this product

This item is eligible for return within 30 days of receipt

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.


Availability: Only 3 left in stock, order soon!
Fulfilled by Xiaolinzi Stroe

Arrives Nov 17 – Nov 27
Order within 19 hours and 16 minutes
Available payment plans shown during checkout

Features

  • It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).
  • The impedance become small, and we can then measure the true series resistor value.
  • Using this theory, we can measure the capacitor is bad/ damaged or good in condition.
  • Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.
  • During repag TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.

Description

This MESR-100 V2 auto-ranging capacitor ESR and low Ohm meter measuring range from 0.001 to 100.0R, support in circuit testing. Using true 100 KHz sine w-ave to measure the ESR value, which is equal to the testing method of capacitor manufacturer. Specifications: Color: Black Range Accuracy(After 0, Refresh Time(Manual Mode) tested with 1,10,100R Auto mode take 0 to 2s, more time resistor) depends on capacitance value. 0.000 to 1.000R 1%+2Digit ~0.4s 1.000 to 10.00R 1%+1Digit ~0.4s 10.00 to 100.0R 2%+1Digit ~0.4s Accuracy: Up to 1% (detail on above table) Wide Measurement Range: >1uF High Resolution: 4 digit, or 0.001Ohm @ 1 Ω range Measuring voltage: <~40mV RMS (TESTING VOLTAGE) External Power: 5V micro USB Operating Current: 0.02A Battery: 2 AA 1.5V Battery (not included) Battery Life time: >80 Hours Item Size: Approx 14.5 8 3cm / 5.7 3.1 1.2in Item Weight: Approx 139.6g / 4.9oz Package Size: Approx 17 9 5cm / 6.7 3.5 2.0in Package Weight: Approx 218g / 7.7oz Package List: 1 Capacitance Meter 2 Test Clips 1 s-m-d Clip 1 User Manual

Brand: Fesjoy


Power Source: Battery Powered


Color: Black


Item Weight: 139.6 Grams


Item Dimensions LxWxH: 6.69 x 3.54 x 1.97 inches


Manufacturer: ‎Topuality


Part Number: ‎Topuality-E13872


Item Weight: ‎4.9 ounces


Product Dimensions: ‎6.69 x 3.54 x 1.97 inches


Color: ‎Black


Power Source: ‎Battery Powered


Date First Available: November 18, 2020
