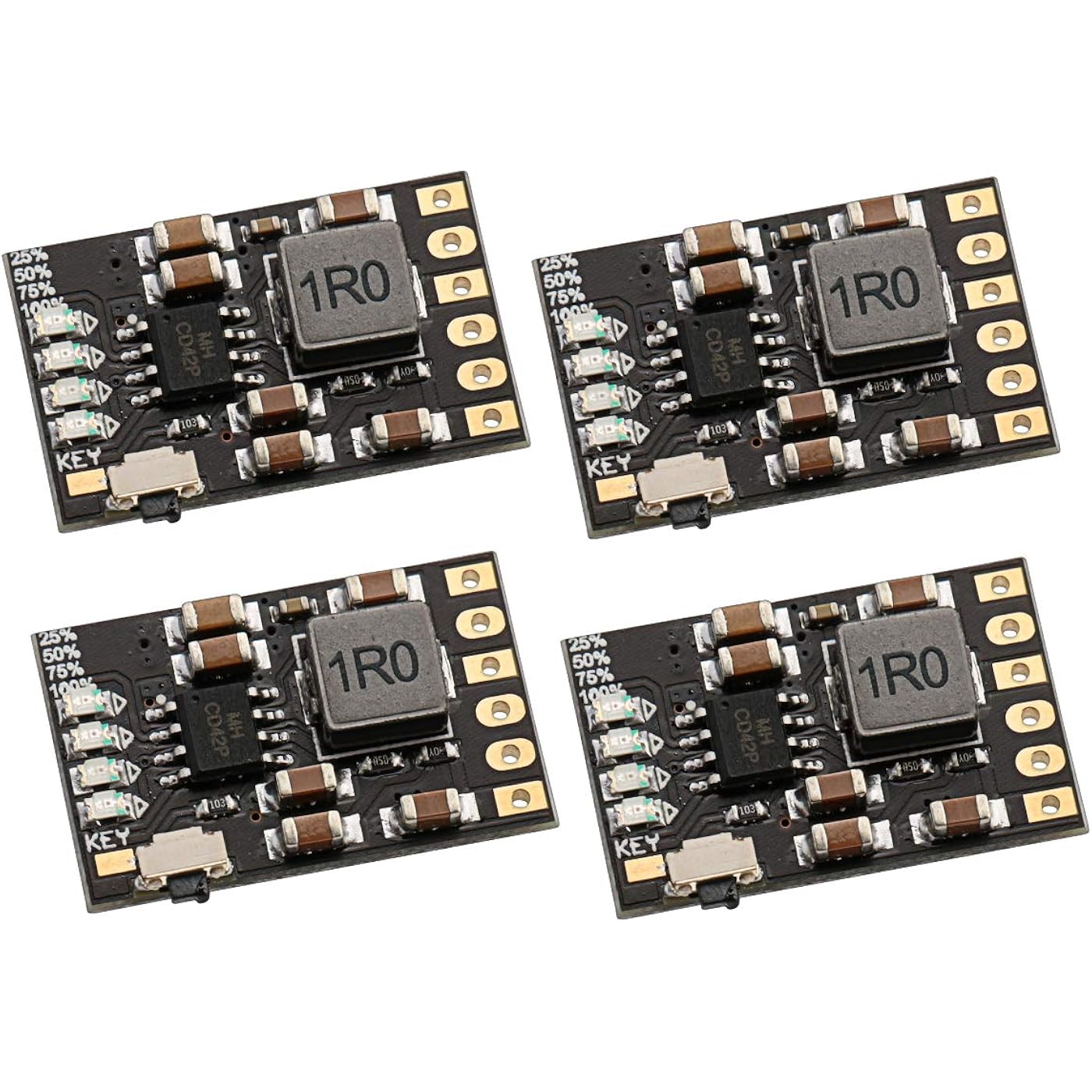

Beffkkip 4pcs 2A 5V Charge Discharge Integrated Module 3.7V/4.2V PCB Board Module for 18650 Lithium Battery Charging Boosting Mobile Power Board

    • Based on 51 reviews
Condition: New
Checking for product changes
$8.99 Why this price?
Holiday Deal · 64% off was $24.99

Buy Now, Pay Later

As low as $2 / mo
  • – 4-month term
  • – No impact on credit
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout. Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Free shipping on this product

This item is eligible for return within 30 days of receipt

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: In Stock.
Fulfilled by Amazon
Arrives Saturday, Dec 28
Order within 23 hours and 27 minutes
Available payment plans shown during checkout

Features

  • 4 in 1 Charging + Discharging + Lithium Battery Protection + Battery Level Indicator Module. Lithium battery protection function: over-current, overvoltage, over-temperature, short circuit protection.
  • MCU users, if you accept a small load KEY can be connected to the microcontroller about 20s to provide a low level allows the module to continue working. Trigger mode: low level trigger (ground)
  • In discharge mode (The charging mode KEY function is invalid), trigger the KEY port once to open the output; continuously trigger the KEY port twice to close the output.
  • The first time the load is connected, the output is automatically turned on. If the load is less than 50MA, the output will be automatically turned off after 30 seconds; if the load is greater than 50MA, the output will be automatically turned on.
  • Allow discharge while charging. (Note: At this time output voltage 4.7 / 5V)

Description

It is made of electronic accessories, nickel plating on surface(anti- oxidatioan), inner conductor: pure copper.it is long lasting and durable for you to use. Parameter: Charging voltage: DC 4.5V-5.5V (DC 5V recommended) Charging current: 0-2.1A Charging quiescent current: 100uA Full voltage: 4.2V+ -1% Discharge current: 0-2.4A Discharge quiescent current: 50uA Discharge efficiency: up to 96% Output voltage: 5V Output current: 0-2.4A Ambient temperature: -20℃ to + 85℃ PCB board process: Shen Jin Size : 25 16 4mm The module comes with lithium battery protection function： Over-current protection (OCP) Overvoltage protection (OVP) Short Circuit Protection (SCP) Over-temperature protection (OTP) Charge and discharge power level 4 interval indicati Pin description: VIN: Charge Port Positive Input + GND: Charger Negative Input - BAT: Lithium Battery + GND: Lithium Battery - GND: Output Negative Output - OUT: Output Positive Output + KEY: Output Enable Trigger Port (Low Pulse Trigger) Applications: Car charging retrofit Driving recorder power supply Mobile power Portable devices such as mobile phones and tablets Package Including: 4 2A 5V Lithium battery charging protection module


Brand: Beffkkip


Color: Black


Item Weight: 0.32 Ounces


Input Voltage: 5 Volts


Output Voltage: 5 Volts


Package Dimensions: 5.83 x 3.9 x 0.47 inches


Item Weight: 0.317 ounces


Date First Available: December 19, 2020


Manufacturer: Deegoo-FPV


Frequently asked questions

If you place your order now, the estimated arrival date for this product is: Saturday, Dec 28

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • Afterpay Financing
  • PayTomorrow Financing
  • Financing through Apple Pay
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • Great Lithium Ion Charger
I use these to charge old batteries from Switch controllers for hobby projects. Make sure you install the battery last so you will be less likely to fry the circuit. I have fried a few. Use tape to cover the solder leads if you need to. The power plane pieces are very close and slightly difficult to solder. But with patience, you can do it! They also work with bigger batteries like this! https://www.amazon.com/gp/aw/d/B0B4DRZBWX?psc=1&ref=ppx_pop_mob_b_asin_title ... show more
Reviewed in the United States on March 23, 2023 by Travis
    • Charges a 3.7V Lithium battery with a 5V input, and Boosts the 3.7V to a 5V output.
Review Image by David Wall David Wall
Review Image by David Wall David Wall
Review Image by David Wall David Wall

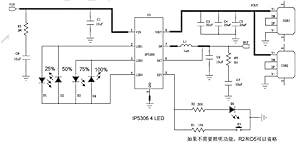

This is a nice little board. With 5V in, the board charges a 3.7V Lithium battery. When you remove the 5V input, the board boosts the 3.7V from the battery to a 5V output. Its a charger and a booster in one board. There is not a lot of info for this board, but it appears to be a clone of a IP5306, which I have included in the photos. The picture that is included on Amazon shows a 200mAh battery but I used it to charge my 5000mAh battery, which I also purchased on Amazon, awsome battery. It took 24hrs to fully charge my 5000mAh battery. The description says that you can charge and discharge at the same time, but I have not been able to get this to work. When I have 5V to the input pin, the output pin is low, or 0V. When I remove the 5V from the input, the output pin goes high, 5V. The only thing I can get the KEY pin to do is to shut the board down, whether charging or discharging, by holding it low, 0V, for 20 seconds. Also the push button on the board does the same thing, provides 0V to the KEY pin. My plan is to solder onto the LEDs and tie them into an Arduino and write a sketch to charge the battery if its below 25% and not in use. ... show more
Reviewed in the United States on January 27, 2021 by David Wall David Wall
    • Well buit.
This was just right for my use, i hooked up a battery pack to it and the out to a bluetooth board amp, and a usb c female connector on the in to charge battery when ever i need to. Its very small so i can stuff it out of the way as long as i can get to the on button.100% recomend.
Reviewed in the United States on February 24, 2021 by Just me
    • Great 5V backup source for projects from 3.7V Lithium cell
Review Image by Bettina B. Hawkins Bettina B. Hawkins
Review Image by Bettina B. Hawkins Bettina B. Hawkins
I use these as a backup for Arduino/ESP and RPi projects where i want battery backup from a single cell Lithium 3.7V battery. If you're doing a cold start then you do have to press the key, but once you're project is live that isn't required and you don't need to access it again. I have fried one board by messing up with reversed polarity on the Vin side, but otherwise no issues. ... show more
Reviewed in the United States on July 16, 2021 by Bettina B. Hawkins Bettina B. Hawkins
    • Love these
Bought for one reason, yet these solved a completely different problem. Love that I can connect these to a battery, then connect to a device, and keep it topped up unattended. Saved me so much headache
Reviewed in the United States on August 24, 2021 by Michael P.
    • Charges
Great little chip does what it's supposed to and it's cheap
Reviewed in the United States on March 16, 2021 by chad thompson
    • Auto power off can't disable!
The unit shuts off on light loads. No way to disable the auto power off. Whoever made the feature a default, should be sacked. This is amateur hour.
Reviewed in the United States on September 8, 2022 by Rockman
    • Works as anticipated
Tested and approved!
Reviewed in the United States on February 24, 2021 by Fourteen88
