Size: 166" Height
Features
Description

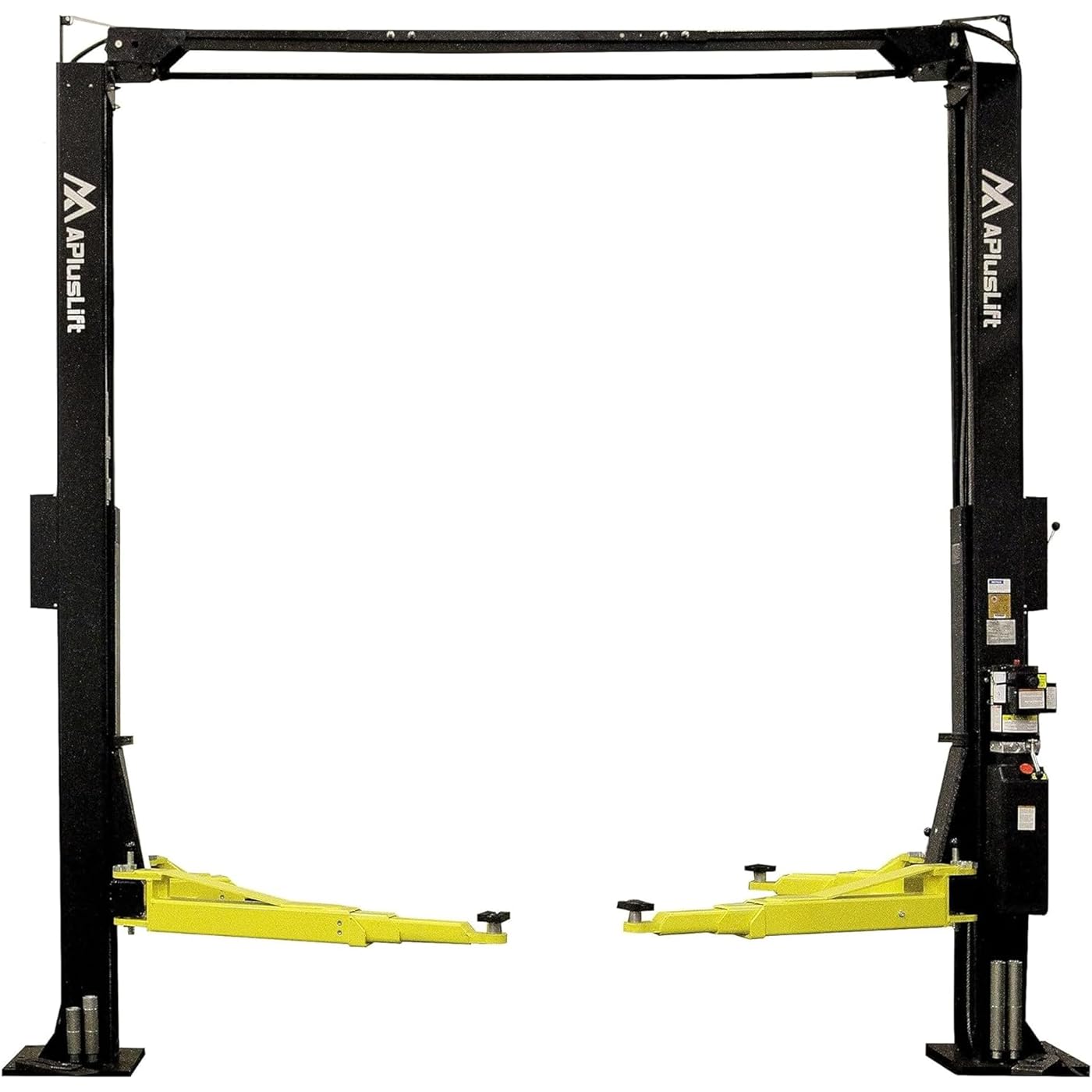

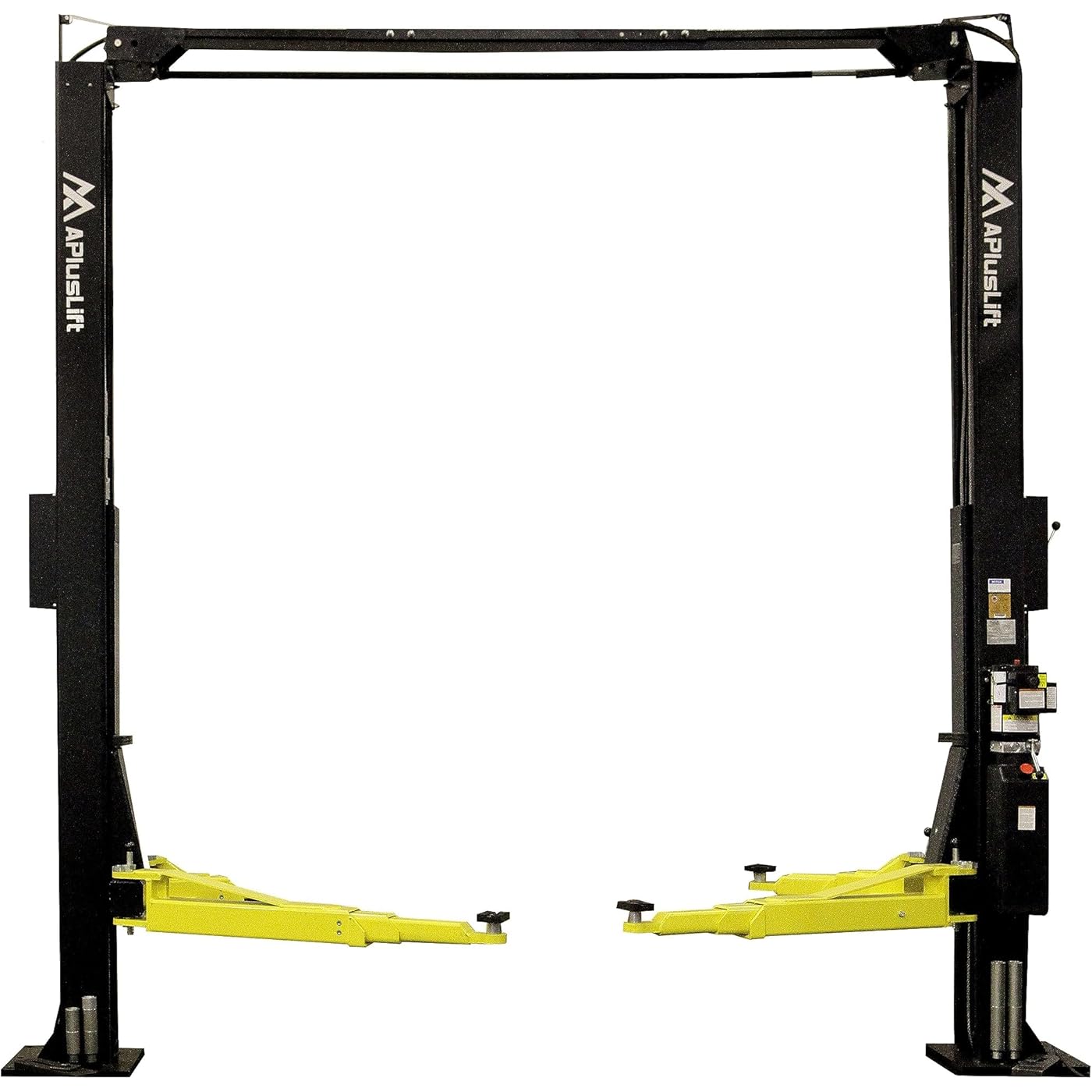

ALI (Automotive Lift Institute) governs the safety standards for automotive lifts in the U.S. ALI Certified lifts must all pass the exact same testing, material and operational standards.Specifications and FeaturesHeavy Duty Design:Column Steel Thickness: 1/4"Carriage Steel Thickness: 1/4"Carriage Yoke Thickness: 9/16"Arm Steel Thickness: 1/4"Base Plate Size and Thickness: 18"x 17 3/4" x 13/16"Driving Mode: Direct Drive Hydraulic cylindersWeight Capacity: 10,000 LBThree Stages Arm Assembly:Front Arm 3 Stage reach from 19 5/16" to 41 7/8"Rear Arm 3 Stage reach from 37 5/16" to 60 3/16"Three Sets of High extension and truck adapters includedSafety Mechanism:Single point safety lock releaseAutomatic arm lock restraintsRelief valve built in power pump to prevent overloadingHeavy duty 3/8" diameter cable and 5" pulleyStiffened base plate 13/16" thicknessControl System:Relief valve built in power pump to prevent overloading3 sets of truck adapters included: 1 1/2", 3", and 6" tallLifting Capacity: 10,000 LBOverall Height without extensions: 143 3/4"Overall Height with extensions: 166"Overall Width: 134 5/16"Maximum Lift height with Truck Adaptor: 78"Maximum Lift height without Truck Adaptor: 69"Minimum Height of Arm Top: 4"Carriageto Carriage Width (Drive through clearance): Max 100"Column to Column Width: 109"Time to full rise: 50 secMotor: 220V Single Phase 3HP 10A (recommend a 30A breaker)Hydraulic Oil: 3-5 gallons AW32/AW46Concrete Requirement: 6" at 3500psiMade In USA Anchor bolts includedShipping Weight: 2,200 LB Shipping package size: 142"L x 22"W x 38"H
Brand: APlusLift
Auto Part Position: Front
Material: Alloy Steel
Included Components: Comes with housing
Maximum Lifting Height: 78 Inches
Manufacturer: Songa Enterprises
Brand: APlusLift
Model: 0312-10097
Item Weight: 2200 pounds
Product Dimensions: 134 x 22 x 144 inches
Country of Origin: China
Item model number: TR-10CX
Exterior: Painted
Manufacturer Part Number: Songa Enterprises
OEM Part Number: TR-10CX
Position: Front
Date First Available: July 8, 2020
