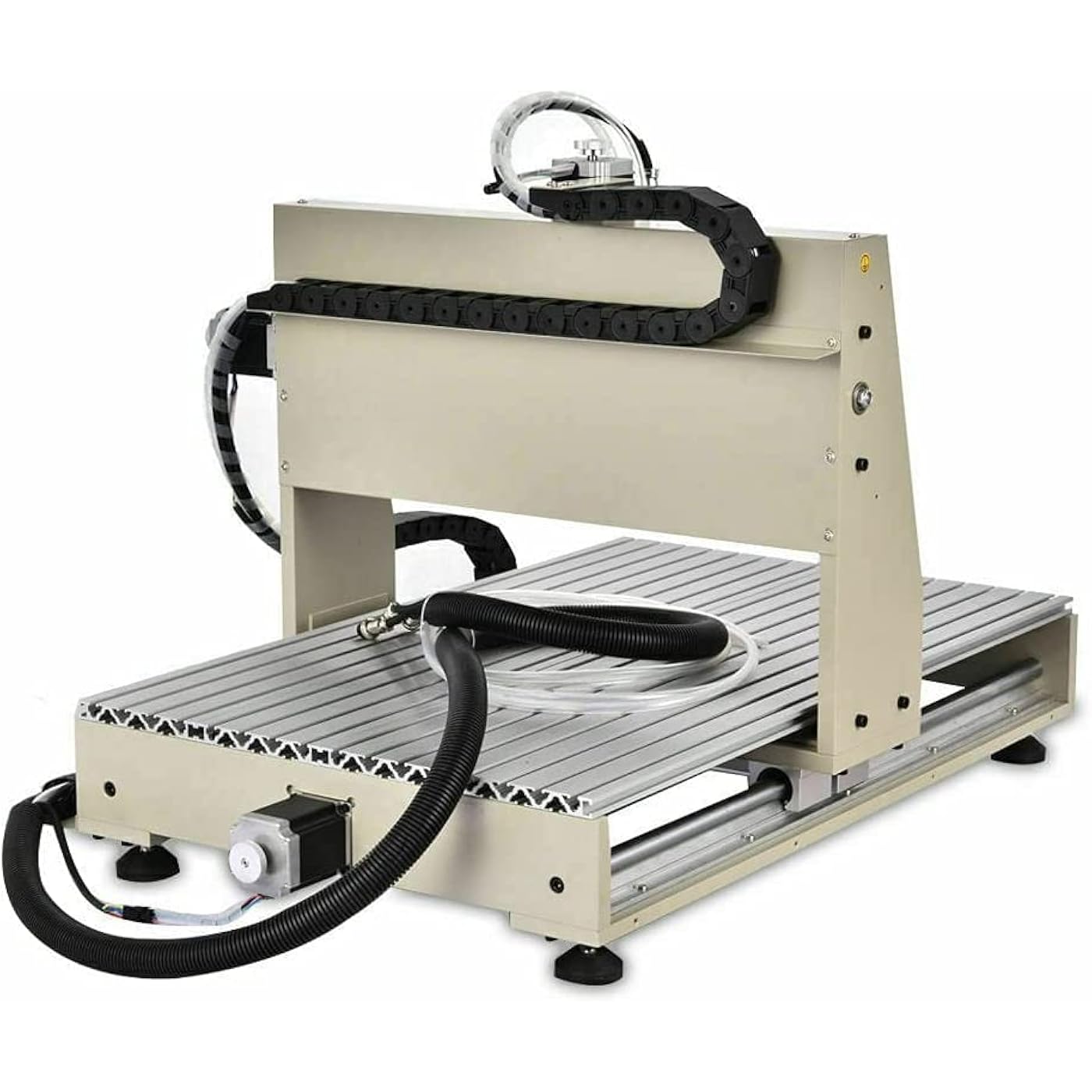

1500W Engraving Machine, 3 AXIS CNC Router 6040 Engraving Machine And Drilling Machine 3D Cutting Machine for Industrial, Technical Research, Teaching, Student Projects and Hobby Purposes

Features

• Feature The NEW 1.5KW water-cooled VFD is available operating for long time,which can reinforced the processing abilty of the machine and can be used toprocess aluminum alloy and hard wood.
• Material High quality accurate ball Screws drive make the engrving more precision.Anti-blackflash,high precision,long life circle.
• It Can Used For EngravingAdvertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin doublecolor plate,PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.
• Apply toSuitable for PCB, wood, Plexi glass, PVC, Crystal Acrylic, RESIN, Plastic, SEALS, MDF, COMPOSITE, Aluminum material, Copper.
• Friendly ServiceWe has local warehouse to ship the goods via 3-7 days to you. If you have any questions, just contact us in any time and we will reply you within 24 hours.

Description

USB PORT! 3 AXIS CNC Router 6040 Engraver Engraving Mill&Drill 3D CUTTERDescription:1. This CNC 6040 machine is suitable for industry, Technology Research, Advertising Design,Arts Creation, Teaching, Student Project and Hobby Purposes.2. The mini CNC router Frame is movable. The machine can connect with computer as other external device such as printer , scanner...3. With the assist of the CNC ROUTER 6040T, your design idea will be real-time display.cnc engraving machine parameters:X, Y, Z Working Area: 600(Y)390（X）120(Z)mmOutside dimension: 865680570mm（LWH）Table size: 770（Y）490（X）mmLathe structure: 6061/6063 Aluminium alloyMax. Feeding height: ≤100mmDrive unit:X axis---1605 Ball ScrewsY axis---1605 Ball ScrewsZ axis--- 1204 Ball ScrewsSliding unit:X axis---High intensity Chromeplate shaftY axis ---High intensity Chromeplate shaftZ axis---High intensity Chromeplate shaftStepping motor: 57 two-phase 3A 150N.cmSpindle motor:(tips：1. The spindle motor must connect with the VFD.2. It cannot directly connect with the supply voltage (AC220V).3. Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.)Outside dimension: 65158mmMaterial: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacketVOLTS, current, power: AC110 /60Hz, 5A, 1.5KW VFDSpindle speed: 24000 rpmMax working frequency: 60HzNote:We only sell machine without software. If you need software, please buy on official website.

Brand: Futchoy

Material: Aluminum, Stainless Steel

Power Source: Corded Electric

Voltage: 220 Volts

Maximum Rotational Speed: 24000 RPM

Brand: ‎Futchoy

Material: ‎Aluminum, Stainless Steel

Power Source: ‎Corded Electric

Voltage: ‎220 Volts

Maximum Rotational Speed: ‎24000 RPM

Base Type: ‎Fixed

Manufacturer: ‎Naratop

Part Number: ‎Naratop-6040

Color: ‎Style 2

Style: ‎Industrial

Finish: ‎Powder Coated

Date First Available: June 2, 2021
