33' 2" Telescoping Mast - TV WIFI HAM Antenna - EZ TM-50-U-95

    • Based on 225 reviews
Condition: New
Checking for product changes
$262.90 Why this price?
Save $16.10 was $279.00

Buy Now, Pay Later

As low as $43.82 / mo
  • – 6-month term
  • – No impact on credit
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout. Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Free shipping on this product

30-day refund/replacement

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: In Stock.
Fulfilled by Antenna Parts Outlet
Arrives Thursday, Feb 20
Order within 8 hours and 15 minutes
Available payment plans shown during checkout

Features

  • 33' 2" assembled height. Collapses length: 95"
  • Bottom: 2-1/4" OD x 18 Gauge x 74" Long. 2nd Section: 2" OD x 18 Gauge x 80" Long. 3rd Section: 1-3/4" OD x 18 Gauge x 86" Long
  • 4th Section: 1-1/2" OD x 18 Gauge x 92". Long Top: 1-1/4" OD x 16 Gauge x 94" Long. All sections are clear coated pre-galvanized steel.
  • Weight: 45 lbs
  • Features guy rings that rotate and a heavy duty thumbscrew/collar system for setting height
  • Must be guyed or bracketed and installed by an experienced professional.

Description

This telescoping mast is made in the USA. It is perfect for mounting antennas or cameras. Choose a safe installation site. Mast must be guyed approximately every 9' at the top of each piece of tubing with the distance from the base of the mast to the anchor equal to the height of the mast attachment point. Anchors should be spaced every 120" if three guy directions are used, or every 90" if four guy directions are used. The base and all anchors must be properly grounded. Antenna load should not exceed 2 sq ft of surface area Do not attempt installation or dismantling if there is any wind or on a wet day Tie off mast with rope (non metal) to deflect away from power line if it should fall during installation or dismantling Use adequate and skilled help in working with this product and have an experience supervisor If you are in doubt as to the proper use or method of installation or dismantling, contact an experienced installer and your local electrical utility for assistance.

Antenna: Television, Radio


Brand: Easy Up


Color: Silver


UPC:


Manufacturer: Easy Up


Number of Items: 1


Product Dimensions: 396 x 5 x 5 inches


Item Weight: 45 pounds


Manufacturer: Easy Up


Country of Origin: USA


Item model number: EZ TM-50-U-95


Is Discontinued By Manufacturer: No


Date First Available: June 25, 2015


Frequently asked questions

If you place your order now, the estimated arrival date for this product is: Thursday, Feb 20

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • Afterpay Financing
  • PayTomorrow Financing
  • Financing through Apple Pay
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • Excellent, but be warned: Work ahead of you!
Review Image by SABell SABell
Review Image by SABell SABell
Review Image by SABell SABell
Review Image by SABell SABell

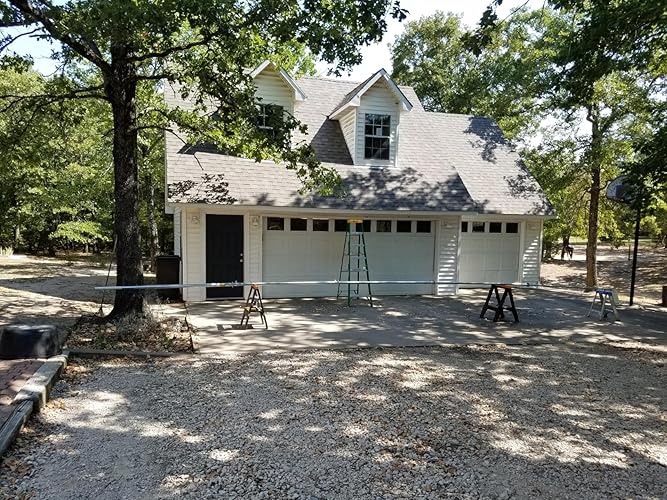

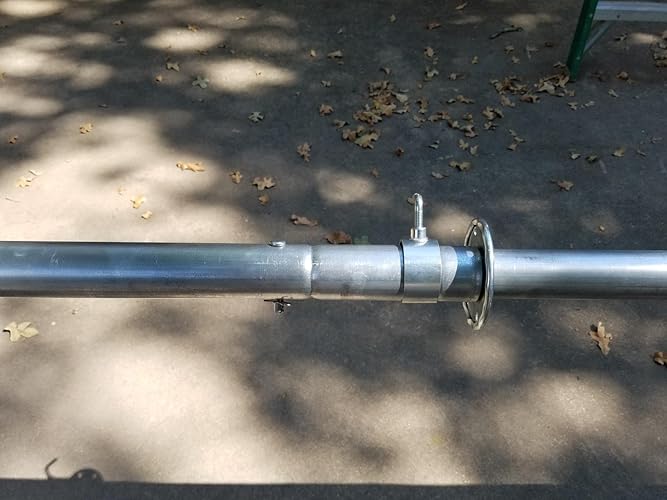

The problem: I needed a pole for putting up an antenna to pull in a better cell tower signal. It needed to be tall enough to clear the majority of trees on my property. I have a lot of trees. The solution: Easy Up 33' Telescoping Mast NOTE: This is the solution I came up for myself and may not be practicable for you. Up front: 1. The pole is well made. Lightweight (for 33'). It still took me a bit to wrangle it though. I am a fit upper-middle-age man so I got some upper body workout with this, but not terrible. 2. No instructions on setup. It took me a couple of swipes at it until I got it up correctly (even after messing with extending it horizontally on the ground!). I recommend assembling the pole on the ground (maybe go through the exercise a couple of time to get it all down). 3. It comes with large scale cotter pins to use as stops for each section. These are NOT what you want to use. Will they do the job? Yes. I didn't like them so bought some 3/8" Clevis pins. I had to ream out the holes on the pole a little bit for them to fit smoothly, but they are so much more substantial than the cotter pins. 4. You WILL need guy wires. Two levels minimum. I suggest three levels. We have regular storms through our area in the spring and fall, and didn't want to lose the mast over being chintzy on guy wires. - I used the bottom guys to stabilize the pole, and the upper ones to stiffen things up considerably. It is bowing ever so slightly in the middle. I believe this is do to a bit of slop in the articulation of the pole. So a third set might be in the near future. - 1/8" T316 Stainless Steel Cable 7x7 (1780 lb breaking strength). I found a 110' spool worked fine. - Heavy duty stainless steel S shaped hooks (2.2" x 1/5") - 1/8" Cable stainless steel railing kit (I found a 6 pack which includes stainless hook eye turnbuckle, M3 wire rope cable clip clamps, M3 aluminum crimping loops, and m3 SS thimbles NK10 - spares are nice, and you will need a crimper) - Stout pair of pliers for crimping the S-hooks - Crimping tool (wire rope tool and cutter) - You will need to double-sleeve whichever end you are crimping for the guy wires 5. Due to a variety of mistakes (I have had to work through this the hard way), and the complete lack of instructions, I have had this pole up and down five times now. By the fifth time I had it down to a science! It DOES go up, and down quickly even with guy wires. 6. This pole is straight! With all guy wires slack it still stands almost perfectly vertical. I had minimal messing with the upper guys. 7. I used a tripod for mounting on my roof. The bottom OD is exactly what it says: 2.25". So, bought a 2" OD tripod, and had to modify the top-and-bottom brackets to accept the larger diameter. Good luck finding a tripod larger than 2". I was not able to find one, but the mod to the tripod worked fine. 8. Well boxed (heavy cardboard tube). The pole had no unboxing instructions, but I was able to figure it out quickly. Don't worry about the wooden stoppers at each end - they have nothing to do with the pole other than to keep it safe. 9. My antenna cable placement took some thought as there is no way to put the wire through the guy wire plates. I ended up looping large outside the plates and anchoring with tie-wraps; giving it enough room so the guy wire plates could still spin. Invest in some tie-wraps. All the materials mentioned, I was able to find on Amazon (most of which, other than the pole, were next day delivery). WARNING: Wear gloves when assembling the mast. Be careful in raising the mast that you are properly locked in. Had it come down on me (only one section), because I hadn't done so. There is a lot of packing grease inside to allow the pole to move freely when extending it. Fortunately I didn't hurt myself in the process, but you will need to make sure you get your pin set AND get the locking sleeve tightened down for each section. Go slow, take your time, do it right. So other than the cheesy large cotter pins that the pole comes with, and the lack of instructions, this is an excellent mast. Well worth the purchase! I couldn't be more pleased. ... show more
Reviewed in the United States on August 27, 2020 by SABell SABell
    • Very good mast
Very pleased with this mast. I got the 33' version and am pleased. No bending or flexing on top with a 3 Element YAGI antenna. The guy wire hookups are perfect and stabilize this mast on windiest of days. Easy to transport and put up. I did it solo but have lots of experience and equipment regarding these things. A helper is suggested. When extending or retracting the mast be sure to wear good leather gloves because you will get pinched painfully without them. Fully extended it stays more than secure. A very good mast for base operations. ... show more
Reviewed in the United States on November 5, 2023 by Mark G
    • Does the job! Seems to be a quality product
Set up is fairly straight forward. Telescoping mast means it's easier to bring it up or down for adjustments or weather. Requires guy lines for heavier antennas or equipment but has convenient guy line attachment points per section. Guy wires and connecting hardware are not included. Pricey item but it's galvanized so, it should stand up to weather and time well. ... show more
Reviewed in the United States on January 31, 2023 by Jake5141
    • Solid product but not shipped with all necessary components. Proper installation when fully extended very involved.
This is a good, solid, well made product. However, if the intent is to use the mast fully extended, then the installation is not for the “faint of heart.” I’ve given this product a four star review for the following reasons: 1) The mast itself does not come with any of the necessary components to do a proper installation. If purchasing, be sure to order the additional foot plate, suspension cables, electrical ground wiring, and needed tie-wraps etc. for mounting the actual antenna and antenna wiring. 2) Mounting location can be very limited as warning instructions on the mast itself state that there must be at least a 90’ clearance between the installation point and any power lines. (This information should be included on the Amazon website.) This could be a real problem for those worried about losing signal strength due to the necessary extended cable length. 3) Although seeming straightforward, there was no installation or parts manual of any kind included with the mast. For my setup I opted to have a professional electrical company do the installation. It took two men over 6 hours (or over 12 man hours) to properly raise and secure the mast along with all of the the necessary guide/suspension and antenna wiring. I’m very happy with the end product but this installation was not “Easy Up” as one is lead to be believe from the product name. As mentioned at the outset, if you’re going to use this mast fully extended, then installation is not for the “faint of heart.” ... show more
Reviewed in the United States on December 10, 2017 by U.K. Traveler
    • Quality Tower
Review Image by Uncle Harry Uncle Harry
No instructions or much Utube info on installation. You need some knowledge of how to set up a tower with guy wires. I used some serious roof joist mount brackets with butyl pitch pads, and set 3 sets of guy wires. Added antenna wall brackets to the side of the house, and set it into a mount on a concrete pier. The customer service man was not much help and warned that you better know how to set up an antenna or pay to have it done right. Just do it right! Work out every detail including grounding for the mast and the antenna signal wire. I think the project was worth it. That pole and antenna is steady and secure in 40 mile an hour winds today. 38 stations on my channel master antenna. ... show more
Reviewed in the United States on October 28, 2024 by Uncle Harry Uncle Harry
    • Works great!
Very durable, and easy to use. I use it for my Maco V 5/8 cb base station antenna. Works perfect! It MUST be guywire however.
Reviewed in the United States on October 15, 2023 by Jason
    • Nice and strong
Difficult to raise for one person. Well made. This antenna mast will certainly hold up in a good wind if mounted well. Worth the money.
Reviewed in the United States on June 21, 2024 by Rodsli
    • An EZ Solution To Raise An Antenna Fast.
Review Image by Animal Radio Animal Radio
There is no faster way to get an antenna up 33'. Our FM radio station needed an emergency mast after a windstorm took our 60' tower down. We were able to affix this Easy-up to an existing pole without using any guy wires. However, the guy wires are there if you need them for your build. The mast is heavy-duty, well constructed and stable. It's extremely heavy and is delivered in a 6 foot tube. Two people can easily hang an antenna and extend it to a maximum 33'. This is an inexpensive but reliable solution. It's can be uninstalled and stored as easy as it went up. ... show more
Reviewed in the United States on January 16, 2024 by Animal Radio Animal Radio
