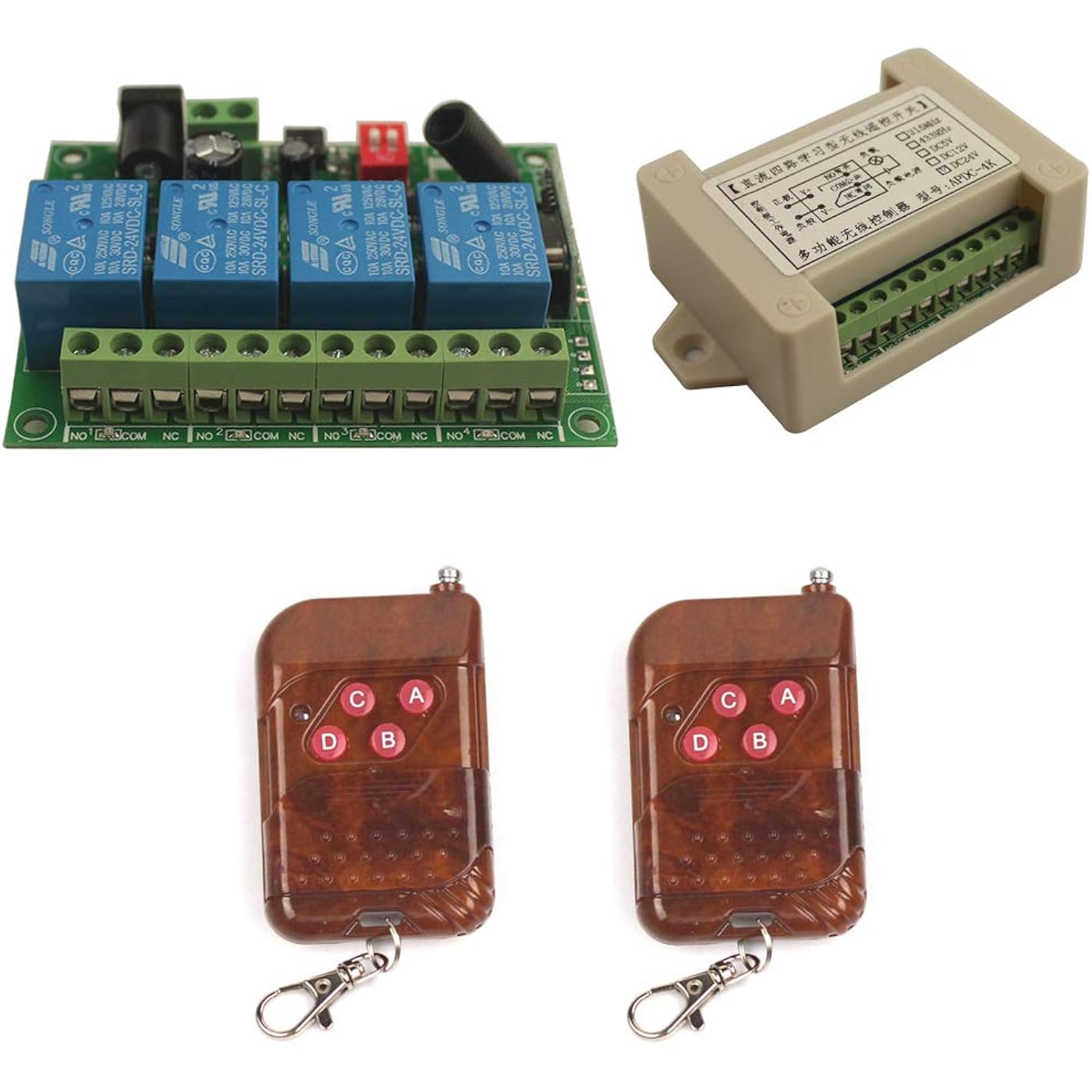

DC 24V 4 CH Wireless Relay Switch Universal 433MHz Smart Garage Remote Switch for Motor Light Switch Long Distance 24 Volt Remote Switch (24V 2X Control 433MHz)

Color Name: 24V 2X Control 433MHz

Features

• 4CH for More ControlAdjustable working way, control equipment turn/reverse, on/off. Switch Self-lock, Jog, Inter-lock.
• Control Voltage DC 24V,Low volt Control High Volt SwitchRelay Load10A 1V-250V(DC/AC)
• Multi-function switch modified for multi-purpose circuit.Universal many Home or Industry Circuit Road,No wiring required,easy install the switch control the electric circuit,The switch receiver wired between power and electric appliance.
• Safe Learn CodeSwitch Control Code can Delete and re-learn older or new,all control need learn the switch control code,or that can not control switch, Signal can through walls, floors and doors, control switch receiver from any place within a reliable distance. Max range is up to 50m with no obstacle.secuirty Stable and reliable .
• Easy & ConvenienceUniversal for Led Lamp Lights switches, wireless monitoring equipment, Power switch, small motor, buzzer, electromagnet,laser light, electronic power supply equipment,Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows...

Description

Color Name:24V 2X Control 433MHz Switch Feature: Simplify wiring,wide used. mainly used in lighting,LED,Fans.computer, electric doors, windows, lifting equipment, motor control, pumps, lifts control and other fields. switch used 24V control Low and high Voltage 1V-250V. 1.Remote Control Transmitter Operating Voltage: 24V Operating Current: 30MA Operating Frequency: 433MHz Frequency Distance: 50 meter(open/ideal) in theory, 15%-50% in reality Fashion Fashion setting，wireless control high voltage on/off.it 100% safe Encode: Learn Code Controller size: 5.53.81.3CM 2.Switch Technical Parameters: Channel: 4 Channel Decode: Learning code Working Voltage: 24V (please choice right voltage you need) Output way: Momentary/Toggle Latched Adjustable Maximum Load Current: 10A Rated load:10A 1V-230V 3.work/output way: Jog/Momentary : Press one button is Working /ON. Loosen your fingers Stop/OFF. Self -lock/Toggle: Press one button for one time is working/ON. Press the same button again is stop/OFF. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. Work model Set: 1.Jog/(momentary): 1 2 Till(off) (default model) 2. Self -lock/Self-Latched: Pin 1 2 To ON 3.Inter- lock /Latched: 1 To ON 4.Self-lock+Momentary:2 To ON, Relay 1~2 Self-lock (toggle),Relay 3~4 Momentary (Jog) Learn Method: Connect to 24V power,press the learn button 1-2s,after press the remote controller key 1-3 times Remove Control code: Connect to 12/24V power,press the learn button for 8-10s,till LED Off. Package: 1x Switch Relay Receiver 2 x Remote Control Transmitter

Manufacturer: Mangood

Item Weight: 5.6 ounces

Package Dimensions: 4.33 x 2.56 x 1.97 inches

Batteries: 2 AAA batteries required. (included)

Color: 24V 2X Control 433MHz

Batteries Included?: Yes

Batteries Required?: Yes

Battery Cell Type: Alkaline

Date First Available: December 4, 2020
