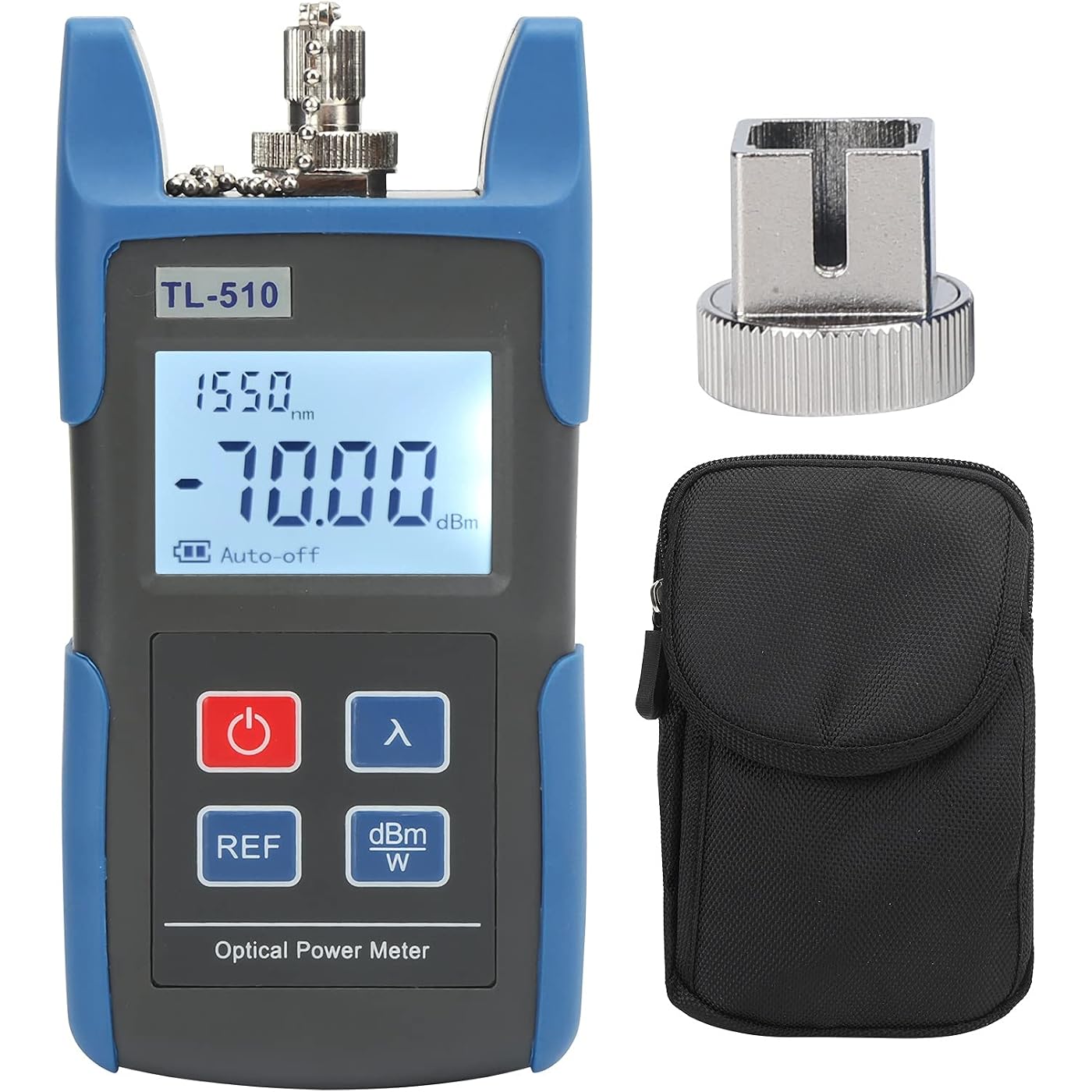

TL510 Optical Tester Portable Light Power Meter FC PC SC PC Connector Tester with 1pc Adapter Head, High Accuracy Optical Power Detector Measuring Instrument ‑70~10dBm

Features

• Precise and Reliable Measurements: Our TL510 Optical Power Meter ensures accurate and consistent readings for a wide range of optical power levels. The easy-to-read backlit LCD display enhances visibility, and the meter's high resolution ensures precise readings every time.
• Swift Responsiveness and Real-time Measurements: Equipped with advanced fast tracking capability, this power meter promptly reacts to any changes in output power. It gives real-time data, allowing for efficient tracking of power fluctuations during testing or operational tasks.
• Broad Measurement Spectrum: The TL510 accommodates a variety of applications with its expansive 80dB measurement range for optical power. Both absolute and relative optical power measurements are supported, offering you versatile power assessment options.
• Multi-Wavelength Calibration: This device is furnished with six calibration wavelengths to provide accurate measurements across different optical systems and applications. It supports wavelengths of 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm, delivering flexibility.
• User-Friendly Design: The TL510 is designed for an intuitive and easy-to-use experience. It comes with real-time battery power monitoring and display, and a low-power warning notification. An automatic shutdown function is also included to conserve battery life when the device is not in use.

Description

1. Accurate measurement, high measurement accuracy and backlit LCD display resolution, with user self‑calibration function. 2. Quick response and measurement. When the output power changes, it can display fast tracking and real‑time measurement of optical power. Spec: Item Type: Optical Tester Material: Plastic Product Model: TL510 Measurement Range dBm: -70~+10 dBm (the actual best measurement range is -65 ~ 0dBm) Wavelength Range (nm): 800-1650 Calibration Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm Detector: InGaAs Accuracy: Resolution: Linearity: 0.1%, Non-linearity: 0.01dBm Working Temperature: -10℃-+50℃ Storage Temperature: -20℃~+70℃ Relative Humidity: 90% (+ 30°C) Connector: Removable for FC / PC SC / PC Power Supply: 3xAAA batteries (delivered without batteries) Working Time:> 120 hours (without backlight) How to Use: 1. Press the power button and the dBm button at the same time, the instrument enters manual calibration mode (all four rows of units are displayed at this time) 2. Select the calibration wavelength with λ, press REF to increase by 0.05dB each time, and dB/W to decrease the power value by 0.05dB 3. Short press the power button to save the calibration data 4. Press the power button and the REF button at the same time to exit the calibration mode. packing list: 1 x Optical Power Meter(Battery Not Included) 1 x Adapter Head 1 x Storage Bag 1 x Manual

Package Dimensions ‏ : ‎ 8.27 x 4.72 x 2.76 inches

Item model number ‏ : ‎ PerGardzxqgw3osf

Date First Available ‏ : ‎ October 23, 2023

Manufacturer ‏ : ‎ PerGar
