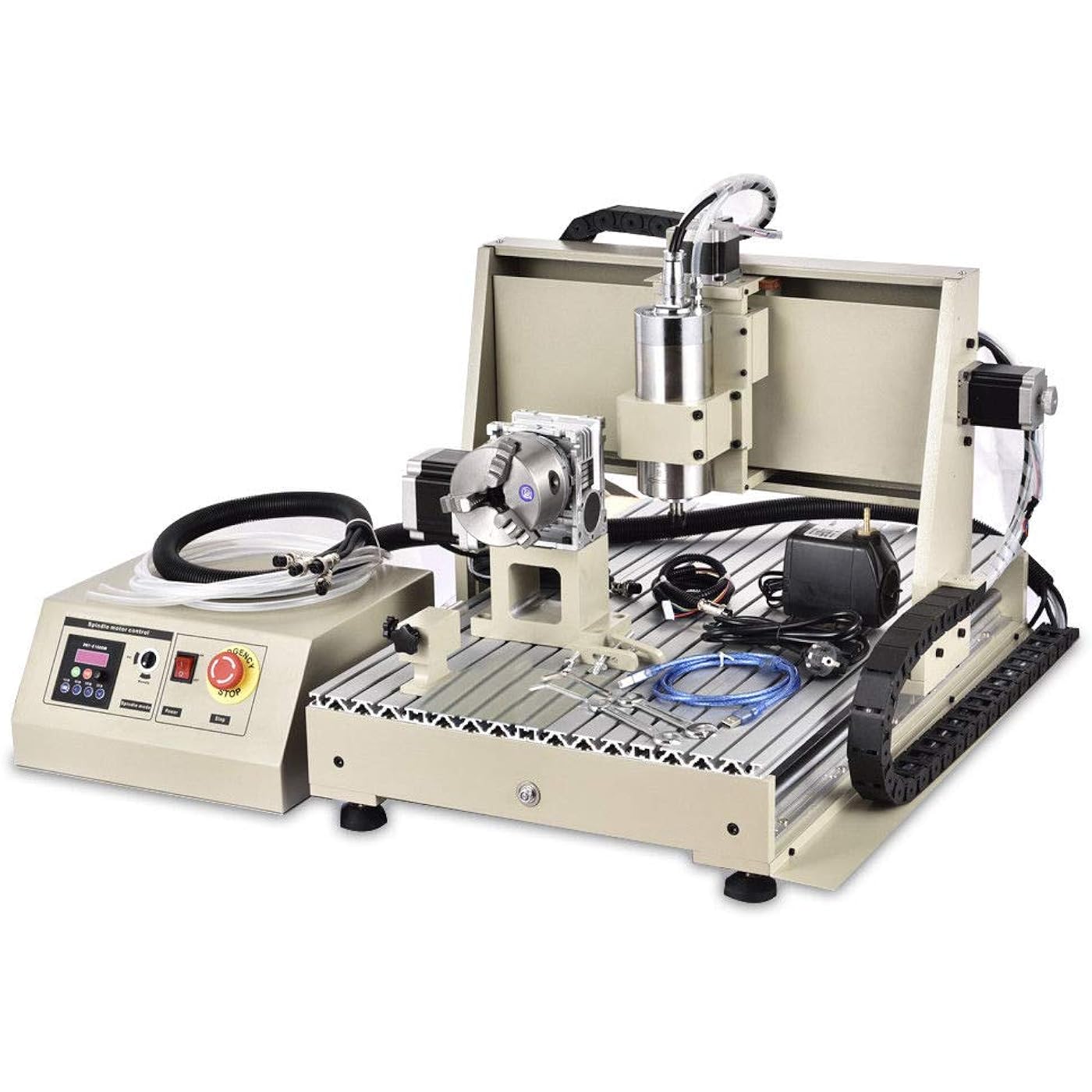

4 Axis USB CNC6040 Router Engraving Machine 3D Milling Machine w/Controller 110V 1.5KW VFD Water-cooling Router Engraving Machines for Metal, Wood, Glass and Plastic

    • Based on 13 reviews
Condition: New
Checking for product changes

Notify me when this product is back in stock

$1,259.00 Why this price?

Buy Now, Pay Later

As low as / mo
  • – Up to 36-month term if approved
  • – No impact on credit
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout. Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Selected Option

Free shipping on this product

Eligible for Return, Refund or Replacement within 30 days of receipt

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: Unavailable
Fulfilled by LiFuJunDong
Available payment plans shown during checkout

Color: 6040 1.5kw 4axis


Features

  • ENGRAVING MACHINE PARAMETERS X, Y, Z Working Area: 600(Y)*390(X)*120(Z)mm Outside dimension: 865*680*570mm(L*W*H) Table size: 770(Y)*490(X)mm Lathe structure: 6061/6063 Aluminium alloy Max. Feeding height: 100mm Drive unit: X axis---1605 Ball Screws Y axis---1605 Ball Screws Z axis---1204 Ball Screws Sliding unit: X axis---High intensity Chromeplate shaft Y axis---High intensity Chromeplate shaft Z axis---High intensity Chromeplate shaft Stepping motor: 57 two-phase 3A 150N.cm
  • SPINDLE MOTOR-1 Outside dimension: 65*158mm Material: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacket VOLTS, current, power: AC110V, 60Hz, 5A, 1.5 KW VFD Spindle motor: 1.5 KW Water Cooled Spindle speed: 24000 rpm Max working frequency: 400Hz Principal axis collet: ER11collet, Standard configuration :6mm Nut Model: ER11-A Cooling: Water-cooling Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM
  • SPINDLE MOTOR-2Lubrication way: lubricated by high grease Repeat accuracy: 0.05mm Spindle precision: radial beat acuities 0.03mm Carving Instructions: G code / TAB files / nc file / NCC files Communication interface: through USB connection with computer Working Speed: 50-1500mm / min (different material with different speed settings) Maximum Idle speed: 0-1500mm/min
  • HIGHLIGHTS OF WATER COOLING SYSTEM It can cool the spindle and protect the machine Avoid the spindle burn out Can engrave the high hardness or metal
  • DESCRIPTIONSIndustrial fit for engraving machine controller was designed system Waterproof design, very durable, anti-dirt, oil spray Power by USB port Dimensions: 22 x 8 x 3cm The usb self-check light, you can type the " scroll" on the keyboard to activate it. Directional motion control: X+, X-, Y+, Y-, Z+, Z-, A+, A- Feed rate control: F+, F- Jog rate: J+, J- Spindle speed: speed up, slow down Programming: E-stop, cycle start, spindle on/off, Redo, single step, original point

Brand: LiFuJunDong


Product Dimensions: 26.77"W x 22.44"H


Voltage: 110 Volts


Base Type: Fixed


UPC:


Manufacturer: ‎LiFuJunDong


Part Number: ‎Engraver 0234


Voltage: ‎110 Volts


Item Package Quantity: ‎1


Date First Available: June 20, 2019


Frequently asked questions

This product is currently out of stock. Please check back later for shipping info.

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • Afterpay Financing
  • PayTomorrow Financing
  • Financing through Apple Pay
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • Solid machine!
Review Image by rk1 rk1
Review Image by rk1 rk1
Review Image by rk1 rk1
Review Image by rk1 rk1
Review Image by rk1 rk1
Review Image by rk1 rk1
Review Image by rk1 rk1
Review Image by rk1 rk1
I purchased the LiFuJunDong 4 Axis USB CNC6040 Router in August of 2021. Machine arrived well packaged. Assembly is simple and straight forward (tools are also provided). All software files were emailed after purchase and provide enough information to get the machine running. I did get a 3 gal. bucket and drilled two holes in the top for the coolant (I used general grade anti-freeze). I did have an issue trying to get the spindle to operate, but turns out I did not have the controller in the PC mode. The customer service was excellent and responded quickly. The machine is solid, I have used it on wood, delrin, and teflon. I have made several molds. This is my first experience with a CNC router. I use solidworks to create the STL files and Mesh Cam to generate the g-code. One small note, I have a dust collector I installed with the machine. I ran metal ducting from the dust collector to the spindle and 3D printed a dust boot. If the metal ducting touches the spindle / spindle connectors during operation, Mach 3 will lose it's zero points and the machine will go way off course. I am very happy with my purchase! ... show more
Reviewed in the United States on March 19, 2022 by rk1 rk1
    • software para este equipo
recienteme recibi este equipo lifujun dong sin ningun instructivo tienen que enviarme el software completo mach3 lo conecte y no funciona comuniquese con migo xin yu wei y expliquese que tengo que hacer para que funcione
Reviewed in the United States on November 22, 2021 by Ramon Antonio batista
    • Exactly as described. Love it!
This machine arrived in 3 main packages/assemblies. 1) The Base Assembly, 2) The Gantry Assembly, 3) The Controller Box and accessories including the 4th axis. The Gantry needs to be bolted to the Base (10 screws), the cabling guide rail/tray screwed to the base (4 screws), and the cable guide screwed to the Gantry and guide rail/tray (2 screws in Gantry, 3 screws and 3 nuts in rail/tray). The tools and hardware are included, but no assembly instructions. Simply looking at the product's pictures provided enough assembly details for me. I'd recommend lock washers and/or thread locker for the gantry bolts. Also, pick up a bucket for the submersible cooling fluid pump. I went with a 2.5 gallon from lowes and its matching lid, drilled holes to pass the tubing through the lid and notched the lid for the power cord. PC cooling fluid works well for me, and should help prevent corrosion and scum (as opposed to water), but time will tell. I'm enjoying learning and using this machine. Having never milled anything before, I'm finding all of the resources that I need to get me going are readily available and simple enough to follow. No regrets on this purchase. UPDATE 9/2/2020: Just over one year later and this machine is still going strong. Completed a lot of projects and have used this more than expected. Other than bits, I haven’t had to replace a single part. ... show more
Reviewed in the United States on August 12, 2019 by J Beck
    • More than I bargained for .
Review Image by bluesux01 bluesux01
Much better than expected in quality and shipping speed . There were no instructions or software included but a little searching and I was able to find everything I needed. If you are familiar with cnc routers this on is worth the cost . I’ll probably buy another one
Reviewed in the United States on August 25, 2020 by bluesux01 bluesux01
    • No ground on spindel!
Just receive it today. Very well packaged, no transportation damage (it is heavy). Assemble is easy, could not check operation yet - Seller should send software, parameters data and manual. While waiting for Seller's response to my request of a manual and software, I decided to check system grounding. There are only 3 wires go to spindle. NO GROUND! It is dangerous. I will have to run this wire myself. Will update later. UPDATE Seller sent me a link to his software - it is all in Chinese, practically useless. No explanation of VFD parameters. Set parameters are wrong – spindle is not even turning. If you are not computer savvy you should not buy this machine. Seller obviously is in China, just have warehouse in US, no support. Did not answer my specific requests. I finally found all necessary information on CNCZONE.com site. ... show more
Reviewed in the United States on October 20, 2021 by YuriK
    • the unit comes with no paperwork, no information about operations, set up or installation,
this was a major disappointment ,it took me over a week to find the correct software on line and I had to buy it after the installation nightmare the unit seems to run well .
Reviewed in the United States on October 17, 2021 by Daryl Angeloni
    • Product support has been great with rapid support of my questions
Quality of product is better than expected
Reviewed in the United States on February 8, 2021 by Gerald
    • Make sure you follow instructions to put the files where they need to go
This is an awesome machine from an amazing company. I had a slight issue with some of the programs and they were right there to help. This company is excellent. There is soo much you can do with this.
Reviewed in the United States on October 9, 2020 by james
