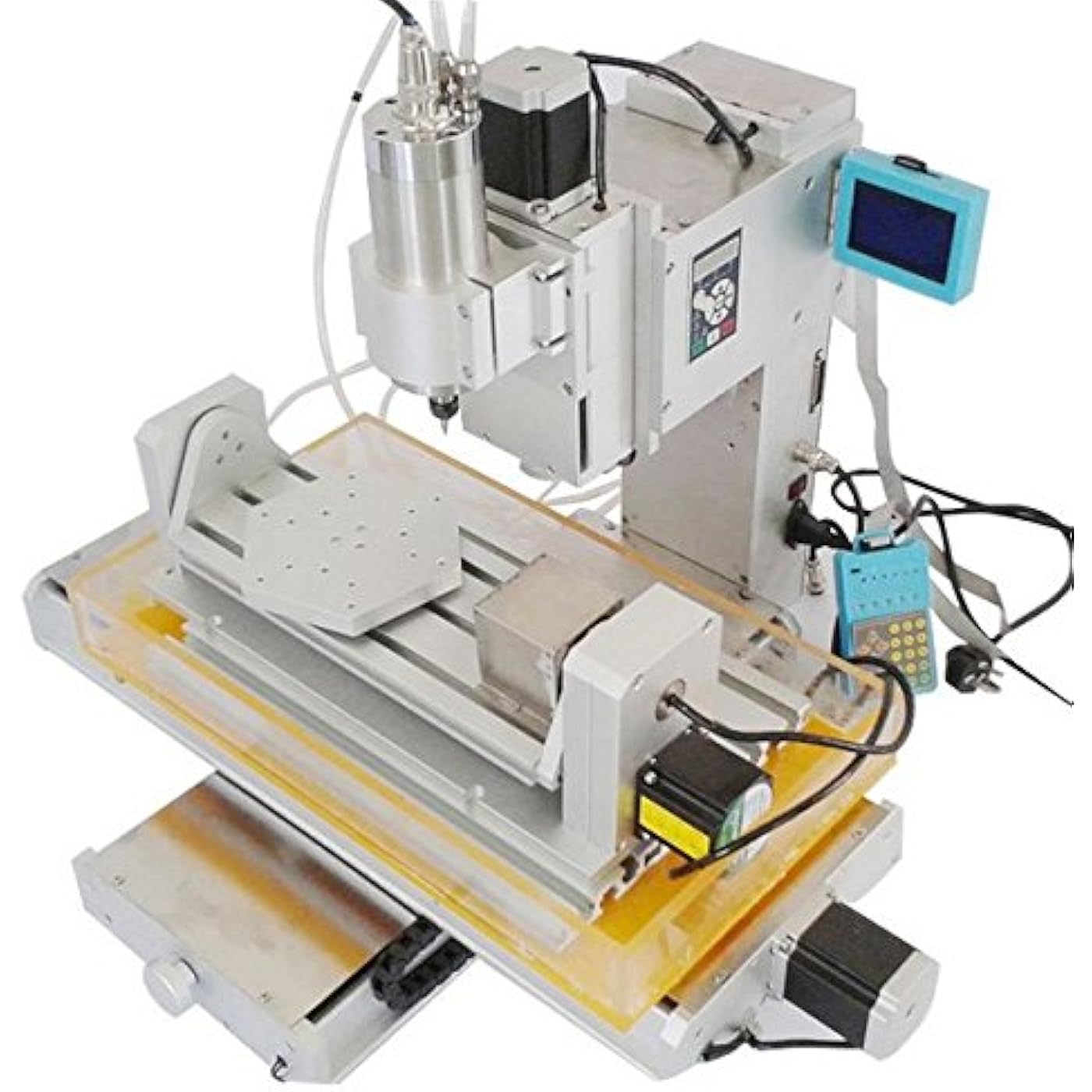

GOWE 5 Axis CNC Router Engraver CNC, Column Type CNC Milling Machine with Ball Screw, 110/220V

Features

• Introduction:Product parameters: 1: Product Dimensions height 715 * 699 * length width 610 (MM); 2: Effective stroke 300 * 400 * (150) (MM); 3:1605 precision ball screw; 4: XY rail diameter 20 plus hard chrome shaft diameter 16 Z-axis rail and hard chrome shaft.5: XYZ3 axis stepper 57 * 78 250 OZ / IN (2.2N/CM); 6: Repeat positioning accuracy 0.01mm, precision 0.02MM; 7: Processing speed 0-4000MM / minute, A-axis B-axis rotation speed of 0-180 rpm / min
• 8: X-axis table maximum load 50KG, 80 four axis chuck Maximum load 30KG; 50 Chuck four axis maximum load 15KG, five axis table maximum load 15KG.9: Stainless steel tailgate; 10: Integrated 24V350W Switching Power Supply; 11:800 W water-cooled frequency spindle Industry; 12:1500 W Industrial spindle drive; 13:4 shaft professional driver board, with LCD digital display and handle, offline programming and path manually duplicate records offline processing
• Product Features:1: Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control; 2: The computer keeps track of the path, you can run once the computer processing
• of the data record-keeping process automatically repeats offline processing operation. 3: Manually move the processing to save recorded track record manually move the machine data and automatically; reprocessed run manually move the path.4: Manual data input processing path and enter the path to run automatically; 5: You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control
• 6: Max 5A stepper motor drive current, eight-speed adjustable.7: Up to 16 segments, higher accuracy, run more smoothly.8: Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals; 9: Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.

Description

Introduction:Product parameters: 1: Product Dimensions height 715 699 length width 610 (MM); 2: Effective stroke 300 400 (150) (MM); 3:1605 precision ball screw; 4: XY rail diameter 20 plus hard chrome shaft diameter 16 Z-axis rail and hard chrome shaft.5: XYZ3 axis stepper 57 78 250 OZ / IN (2.2N/CM); 6: Repeat positioning accuracy 0.01mm, precision 0.02MM; 7: Processing speed 0-4000MM / minute, A-axis B-axis rotation speed of 0-180 rpm / min

Material: Stainless Steel

Exterior Finish: Stainless Steel, Chrome

Brand: GOWE

Item Weight: 2.2 Pounds

Thread Coverage: Fully Threaded

Item Weight ‏ : ‎ 2.2 Pounds

Date First Available ‏ : ‎ October 23, 2016

Manufacturer ‏ : ‎ Gowegroup
