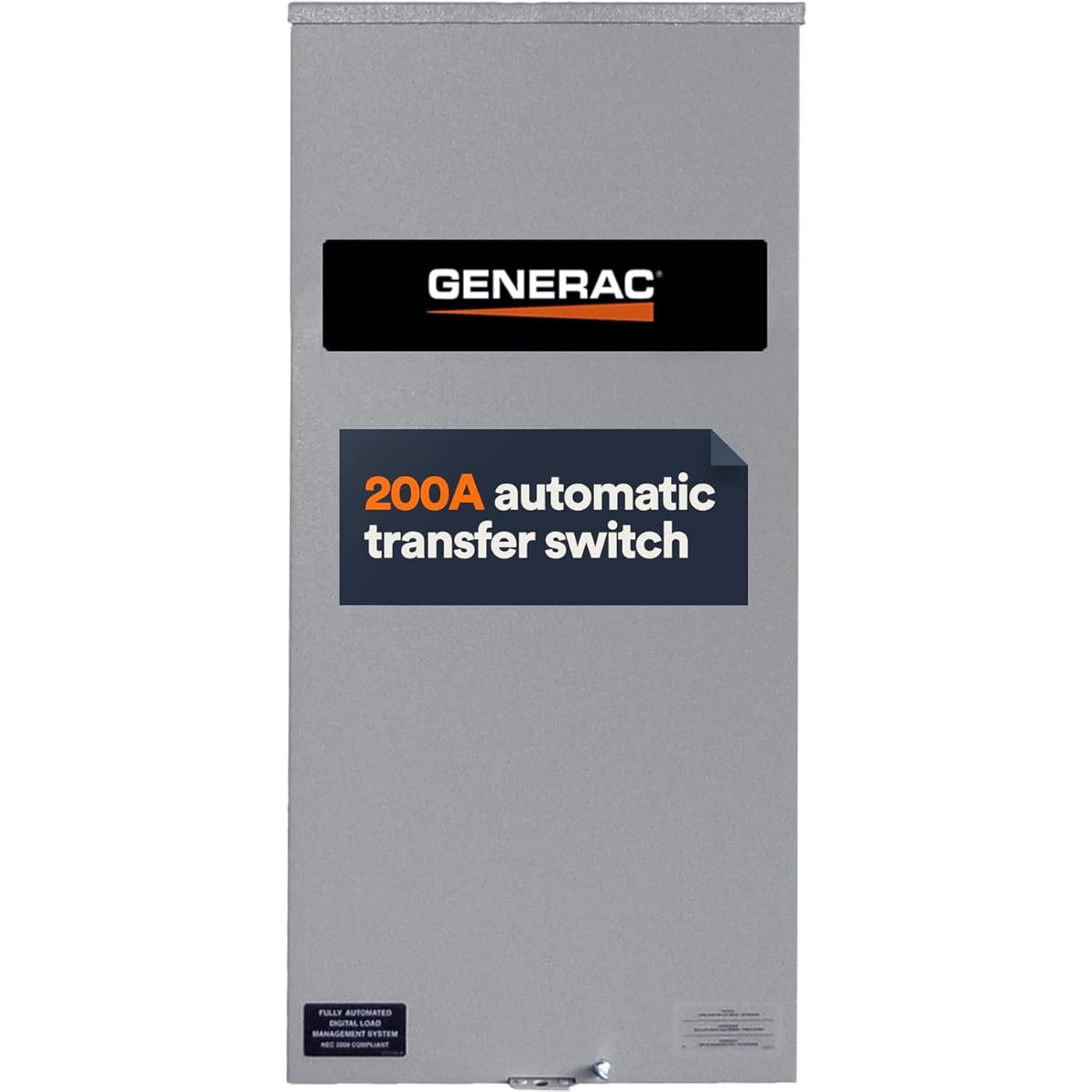

Generac RXSW200A3 200 Amp Single Phase Generator Automatic Transfer Switch - Service Entrance Rated - NEMA 3R Outdoor Rated Aluminum Enclosure - Power Management for Indoor and Outdoor Use

Features

• Seamless Power Transitions: Ensure uninterrupted power supply during outages with this 200 Amp Automatic Transfer Switch. Designed for use with single-phase generators, this transfer switch seamlessly transfers power from utility to generator
• Advanced Digital Power Management: Utilize cutting-edge digital power technology (DPM) to manage up to 4 individual HVAC loads with no additional hardware. Equipped to provide efficient and intelligent power distribution for your essential home systems
• Long-Term Assurance: Count on lasting performance and reliability with our 5-Year Limited Warranty. This assurance provides you with the confidence that your investment in an automatic transfer switch is one that will serve you well for years to come
• Reliable Service Disconnect: Features a built-in service disconnect and is UL Listed, offering a device that interrupts excessive voltage and allows for manually disconnecting your home or business from the electrical utility
• Trusted Generac Quality: Rely on the #1 selling home standby generator brand for your power needs. Whether for your home, business, or personal use, Generac provides best-in-class power products, ensuring peace of mind and reliable performance
• Easy Installation: Generac recommends your new transfer switch to be installed by a certified and licensed electrician. Measures 6.3" x 30.0" x 13.5" overall and mounting holes are 26.8" x 10.5"

Description

Generac Automatic Transfer Switches are designed for use with single phase generators that utilize an Evolution or Nexus Controller. The 200 Amp open transition switch is available in single phase with service equipment rated configurations and works in tandem with the generator to monitor the utility power. When utility power is interrupted, the transfer switch automatically transfers power from the utility to the generator. When utility power returns, the transfer switch will return the electrical load from the generator back to utility. Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware. Generac's RXSW200A3 200-Amp 120/240v Single Phase Automatic Smart Transfer Switch with Service Disconnect is UL listed, measures 6.3-Inch by 30-Inch by 13.5-Inch, weighs 39-pounds and comes with a 5-year limited warranty. As the 1 selling home standby generator brand, Generac offers the best in class power products for all your home, business and personal needs.

Operation Mode: Smart Switch

Operating Voltage: 240 Volts

Contact Type: Normally Open

Brand: Generac

Terminal: Screw Or Blade

Item dimensions L x W x H: 6.3 x 13.5 x 30 inches

Actuator Type: Rotary

Contact Material: Aluminum

International Protection Rating: IP54

Number of Positions: 3

Contact Material: Aluminum

Material Type: Aluminum

Unit Count: 1.0 Count

Number of Items: 1

Item Dimensions: 6.3 x 13.5 x 30 inches

UPC: 696471069631

Global Trade Identification Number: 31

Manufacturer: Generac

Brand Name: Generac

Model Number: RXSW200A3

Specification Met: Ul Listed, Nema 3r Outdoor Rated Enclosure

International Protection Rating: IP54

Number of Positions: 3

Actuator Type: Rotary

Control Method: App

Connectivity Protocol: X-10

Switch Type: Automatic

Terminal: Screw Or Blade

Mounting Type: Panel Mount

Operation Mode: Smart Switch

Operating Voltage: 240 Volts

Contact Type: Normally Open

Color: Multi
