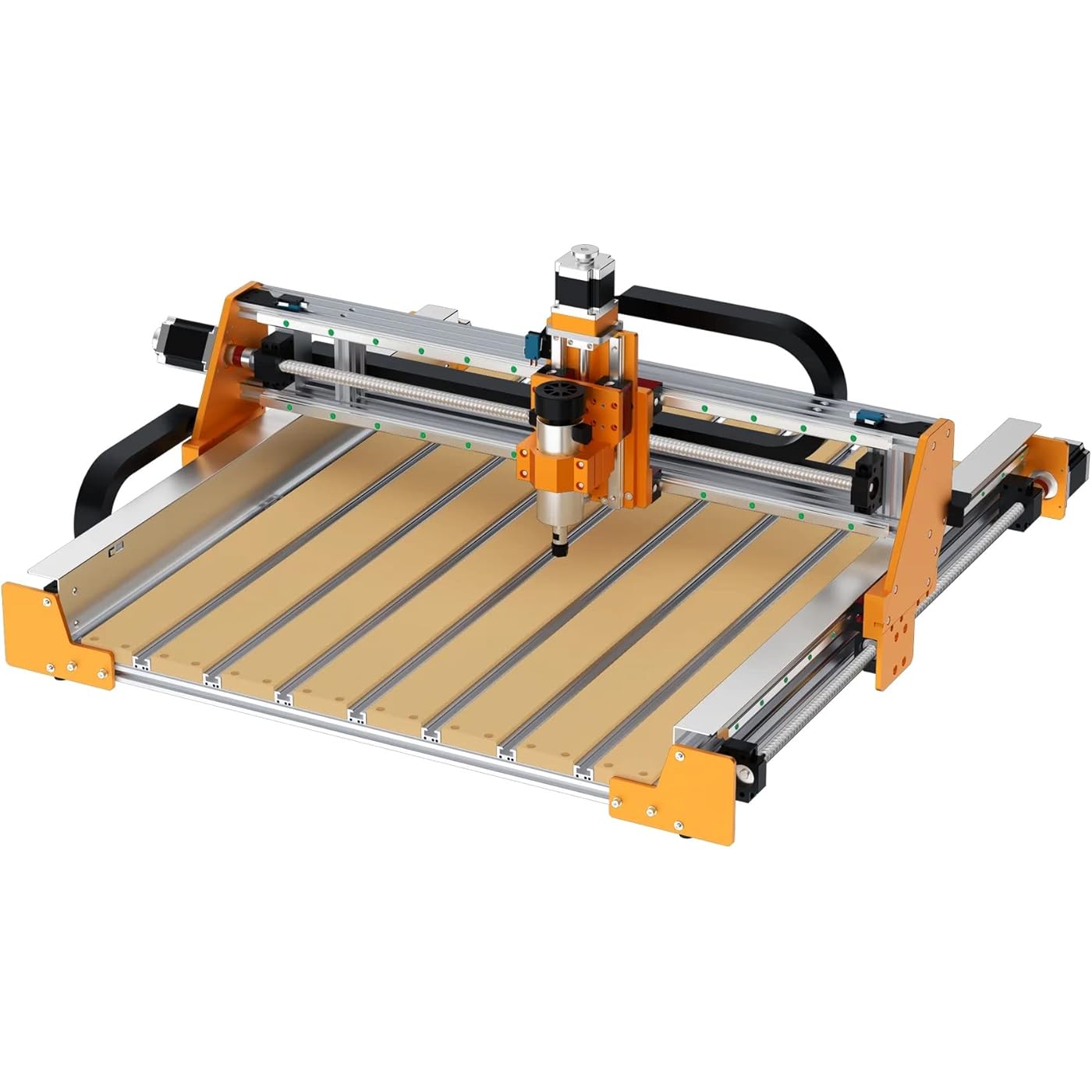

CNC Router Machine VastoXL, 3-Axis Linear Rails and Bearings 400W Spindle Milling Machine for Wood Metal Acrylic MDF Nylon Carving

Features

• Larger Working Area & T-slot Hybrid WorktableThe VastoXL CNC machine has larger working area of 23.62"x26.62"x3.94". The hybrid worktable offers multiple work holding options. It is compatible with FoxAlien mini vise and hold-down clamps. The larger engraving area allows you to accomplish more large projects.
• 3-axis Linear Rails & Ball screwsIt uses HG-15 linear rails and bearings and ball screws in X, Y and Z axis; and these greatly improve the precision and bring the machine to industrial level. All-metal body structure makes it super stable and steady for woodworking and aluminum engraving and cutting.
• 400W Spindle & Compatible with RoutersThis CNC machine adopts the 400W spindle, which is more powerful and efficient for wood, acrylic, aluminum, MDF, carbon fiber etc. engraving. Extra Z-clamps in 69mm and 65mm diameter are included, which are for upgrading to routers such as DWP611 and RT0700C.
• DM542 Independent DriversFour DM542 independent drivers are built-in the controller box. Independent drivers can improve and unleash the potential of the bigger NEMA23 stepper motors. These stepper motors have better torque, which allows the machine to handle hard material such as aluminum more easily.
• Main-parts Pre-assembledMain parts are pre-assembled; it takes about 30-45 minutes to assemble the machine. The machine supports all Grbl software such as Candle, UGS, Lightburn, Lasergrbl etc. It supports Windows XP/8/10/11, Linux and Mac OS.

Description

VastoXL - Hardware Specification: Working Table: T-slot Hybrid Table Cutting Area: 23.62"x26.62"x3.94" Footprint Dimensions: 39.76"x39.37"x17.63"/101cm x 100cm x 44.8cm Spindle: 400W X Axis: HG-15 Linear Rails & 16mm Ball Screws Y Axis: HG-15 Linear Rails & 16mm Ball Screws Z Axis: HG-15 Linear Rails & 12mm Ball Screws Stepper Motors: Nema23 Independent Driver: DM542 Machine Structure Material: All MetalPackage List 1x VastoXL CNC router (half-assembled in 4 boxes) 1x T-slot Hybrid Table 1x Controller 2x Set of engraving bits (10pcs/set) 1x USB cable 1x Power cord 1x Box of screws and tools 1x User manual

Brand: FoxAlien

Material: Aluminum

Power Source: ac/dc

Item Dimensions LxWxH: 39.76 x 39.37 x 17.64 inches

Voltage: 110 Volts (AC)

Brand: ‎FoxAlien

Material: ‎Aluminum

Power Source: ‎ac/dc

Item Dimensions LxWxH: ‎39.76 x 39.37 x 17.64 inches

Voltage: ‎110 Volts (AC)

Maximum Rotational Speed: ‎10000 RPM

Base Type: ‎Fixed

Manufacturer: ‎FoxAlien

Part Number: ‎VastoXL

Item Weight: ‎141.2 pounds

Product Dimensions: ‎39.76 x 39.37 x 17.64 inches

Country of Origin: ‎China

Item model number: ‎Vasto

Usage: ‎Inside; Professional

Included Components: ‎1/8-Inch collet, Independent controller box, 400 watt spindle

Batteries Required?: ‎No

Warranty Description: ‎1-year Manufacturer Warranty

Date First Available: April 18, 2023
