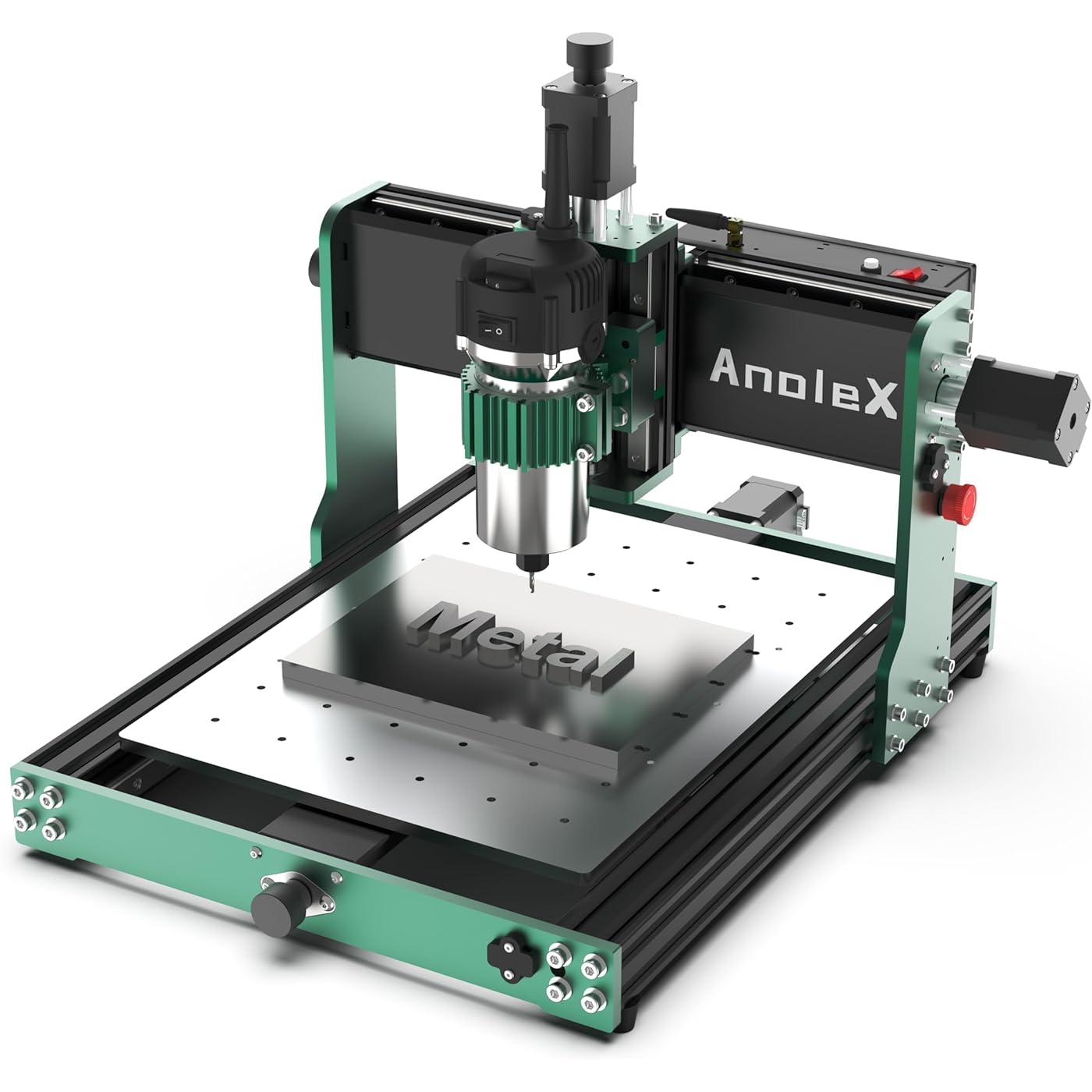

CNC Router Machine 3030-Evo Max, All-Metal XYZ Axis Dual Steel Linear Guides with 800W Trimmer Router, ideal for Cutting Aluminum, Brass, Stainless steel, Wood, Acrylic, MDF, Plastics

Features

• [Upgraded 65mm Trim Router] 800W trim router & Er11-1/8" collet with 6-speed settings (8000-24000 RPM). Can easily cut metals such as aluminum, copper, etc. Software-controlled run/stop functionality, with speed adjustment requiring manual dial control.
• [Dual Linear Guides & Upgradeable Ball Screws] Each axis (X, Y, Z) is equipped with MGN-15 dual linear guides and T8 lead screws. It has high precision, high rigidity and high load for metal cutting, and improved dust protection for X and Y axes. Especially upgradeable 1204 ball screw kit (Coming soon).
• [Grbl_ESP32 Firmware (GRBL 1.3a)] Optimized control board, runs on the latest GRBL 1.3a firmware, supporting advanced features such as laser engraving, 4th axis (Coming soon), M07/M08 coolant control, closed-loop stepper motor(Coming soon), and 3-pin touch probe.
• [Higher Torque Nema17 Stepper] The 3030-Evo Max employs a higher-torque 650mNm motor compared to the common Nema17 motor (420mNm), significantly enhancing its capability to process metallic materials. This increased torque output allows the ball screw and linear guide systems to fully realize their performance potential.
• [Customizable Macro Buttons & WiFi] Built-in 32-bit MCU with ESP3D Web UI, enabling control via PC, smartphone, or tablet without USB cable. Macro button defaul is homing, reprogrammable for tasks like pause/stop/reset or executing G-code from an SD card.
• [Software & Fully Functional] Compatible with Windows, Linux, and Mac, supporting GRBL-compatible software such as UGS, Fusion360, VCarve, Easel, and Lightburn etc.. Includes XYZ dual limit switches, home switch, emergency stop switch, Z probe tool.
• [Easy Assembly and User Support] Major components pre-assembled with clear cable management, accompanied by a detailed paper user manual and assembly/demo video for quick setup.

Description

3030-Evo Max CNC Router Kit with a spindle speed of 24000RPM and a working area of 11.311.812.87inch (28730073mm), this machine has perfect function and rigidity, making it an ideal choice for CNC hobbyists looking to explore the world of CNC routing.Work Area: 287x300x73mm Overall Dimensions(LxWxH): 500x596x412mm Firmware: Grbl 1.3a Driver: TB67S109AFTG Max Speed: 2000mm/min Spindle: 800w Φ65mm Trim Router, 8000-24000RPM Stepper: Nema 17

Manufacturer: ‎AnoleX

Part Number: ‎3030-Evo Max

Item Weight: ‎39.5 pounds

Product Dimensions: ‎19.72 x 19.72 x 16.22 inches

Country of Origin: ‎China

Item model number: ‎3030-Evo Max

Material: ‎Aluminum

Power Source: ‎ac/dc

Item Package Quantity: ‎1

Included Components: ‎CNC Router Machine

Batteries Included?: ‎No

Batteries Required?: ‎No

Date First Available: January 1, 2024
