Features
Description

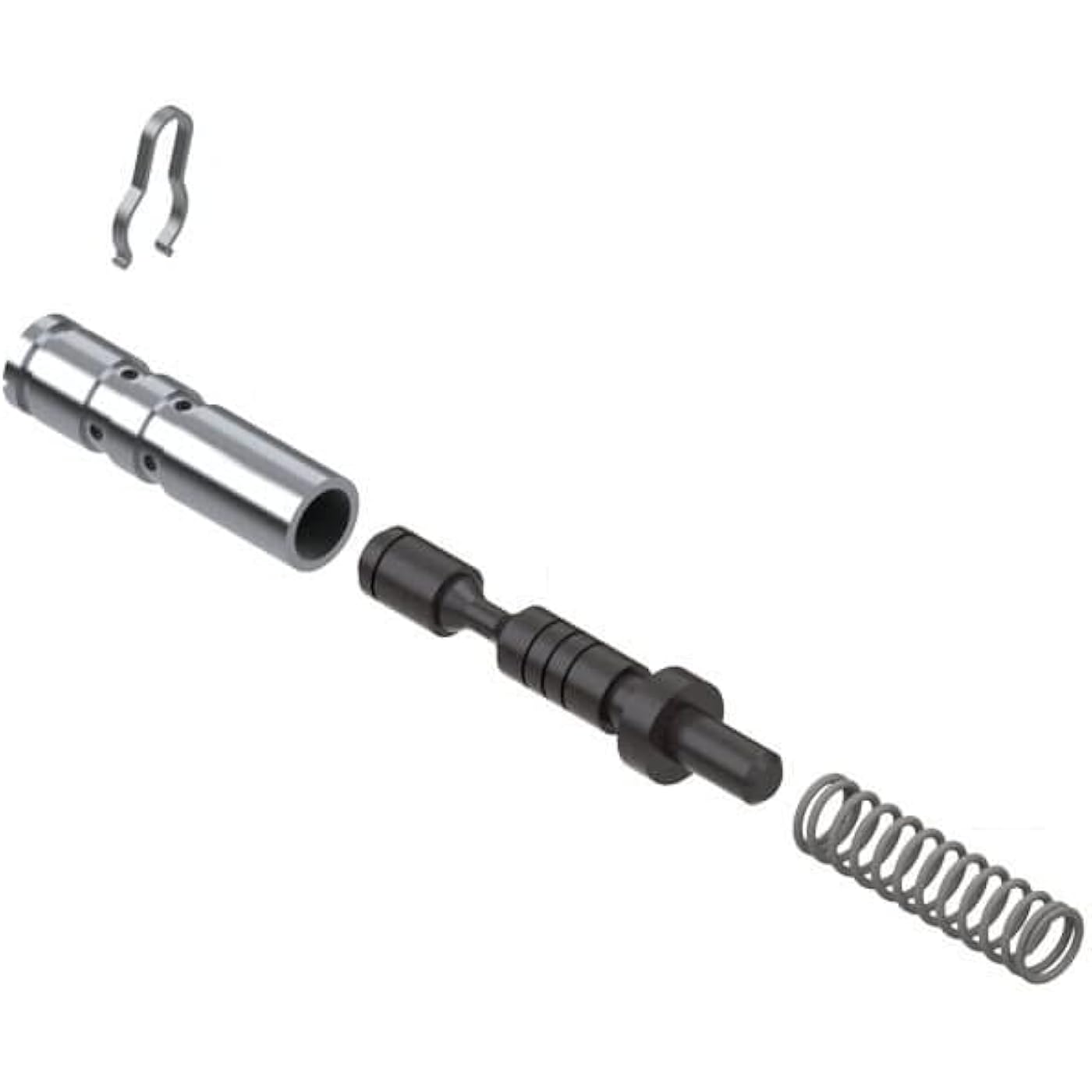

4L60E 4L65E 4L70E transmission actuator feed limit valve kit. Symptoms: 2nd gear starts, 3-4 clutch life reduced, Band failure,Clutch failure, Harsh shifts, No 4th, Solenoid codes,wrong gear starts. Cause: actuator feed limit bore wear results in low pressure at shift and EPC solenoids. Correction: this kit includes a redesigned AFL valve that regulates pressure and a wear- resistant sleeve to re-establish proper pressure control. The AFL valve is a solenoid feed regulator valve that feeds the EPC solenoid and shift solenoids. The OE AFL valve design has a large reaction area and is highly affected by side loading, which wears the valve body bore. The EPC solenoid oscillates the torque signal and AFL oil, which increases valve action. As the bore wear increases, oil pressure is reduced to the shift solenoids, which causes solenoid and ratio codes. The same AFL oil loss results in lower line pressure. The improved Sonnax kit 77754-09K (4L60-E) eliminates these problems. Kit includes a hard-coat anodized valve and wear-resistant sleeve to prevent wear. Valve has annular grooves to prevent side loading and has 54% more support by operating in the full contact sleeve warnings notes Note: Due to the valve diameter and sleeve, this repair requires a reamer and reamer guide tool kit 77754-TL, which also services the 4L80-E.
Manufacturer: Sonnax
Brand: Transparts Warehouse
Item Weight: 1 pounds
Package Dimensions: 8 x 4 x 1 inches
Manufacturer Part Number: 77754-09K
OEM Part Number: 62-77754-09K
Date First Available: June 28, 2013
