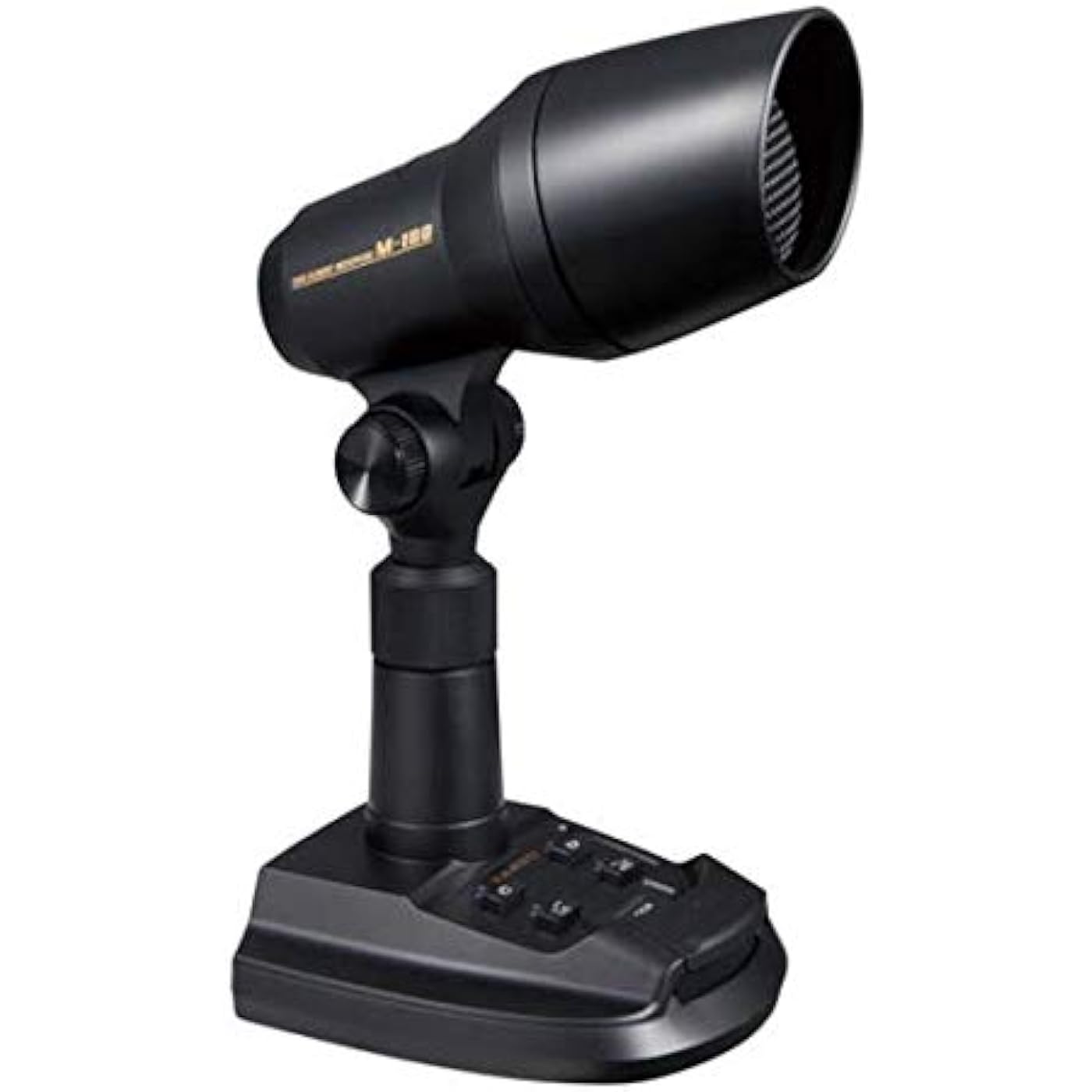

Yaesu M-100 Dual-Element (Condenser and Dynamic Elements) Microphone for Yaesu HF Radios (FT-DX9000, FT-DX5000, FT-DX3000, FT-DX1200, FT–991/A, FT–891, FT–450 series, etc.)

Features

• The new M-100 Microphone features a hybrid design integrating high-quality Condenser and Dynamic elements.
• The Condenser Microphone Element produces greater overall frequency response - with clear and crisp audio characteristics - while the Dynamic Microphone Element delivers enhanced low and mid-range frequency response.
• A set of one-touch buttons on the microphone base enable the two microphone elements to be used independently or in combinations to create the most favorable sound quality for each persons unique voice characteristics.
• Built-in Low-Cut (cut-off at 340Hz, -6dB/octave) and High-Cut (cut-off at 2kHz, -6dB/octave) controls shape the low/ high frequency responses enabling changes to be made in the transmitted audio characteristics, according to users preference and operating conditions.
• The supplied TBC (Treble Boost Cowling) further enhances the voice response attributes in the important 1,000 1,500 Hz range, in order to develop a penetrating signal with a condensed and specific texture.

Description

The new M-100 Microphone features a hybrid design – integrating high-quality Condenser and Dynamic elements. The Condenser Microphone Element produces greater overall frequency response - with clear and crisp audio characteristics - while the Dynamic Microphone Element delivers enhanced low and mid-range frequency response. A set of one-touch buttons on the microphone base enable the two microphone elements to be used independently or in combinations to create the most favorable sound quality for each person’s unique voice characteristics. Built-in Low-Cut (cut-off at 340Hz, -6dB/octave) and High-Cut (cut-off at 2kHz, -6dB/octave) controls shape the low/ high frequency responses enabling changes to be made in the transmitted audio characteristics, according to user’s preference and operating conditions. The supplied TBC (Treble Boost Cowling) further enhances the voice response attributes in the important 1,000 – 1,500 Hz range, in order to develop a penetrating signal with a condensed and specific texture. The PTT key actuates three Air-Cylinder Tubes, which afford a smooth and comfortable keystroke – free of a hard “click”. The incorporation of a magnetic switch ensures long- life and stable operation. The highly visible ON AIR LED Indicator clearly informs the user when the PTT circuit is active. The supplied microphone cable can be used to provide power to the M-100 simply by connecting with compatible YAESU HF transceivers. Current YAESU HF radio owners can immediately start using this new microphone as an exciting and valuable addition to their current ham radio operation. Whether it’s for wider-range audio with more presence or focused energy to cut through the pile-ups, the M-100 is an exceptional station asset. This item does not come with a warranty card. Select Transceivers require the optional "Power Supply Kit", including FT-747, FT-840, FT-850, FT-990 and FT-1000

Recommended Uses For Product: Speech

Brand: YAESU

Connectivity Technology: XLR

Connector Type: XLR

Compatible Devices: Radio

Included Components: Microphone

Polar Pattern: Unidirectional

Item Weight: 3.5 Pounds

Microphone Form Factor: Handheld

Power Source: Corded Electric

Hardware Platform: Television

Manufacturer: Yaesu

UPC: 788026159826

Item Weight: 3.45 pounds

Item model number: FT3000DX

Is Discontinued By Manufacturer: No

Date First Available: October 31, 2018
