Features
Description

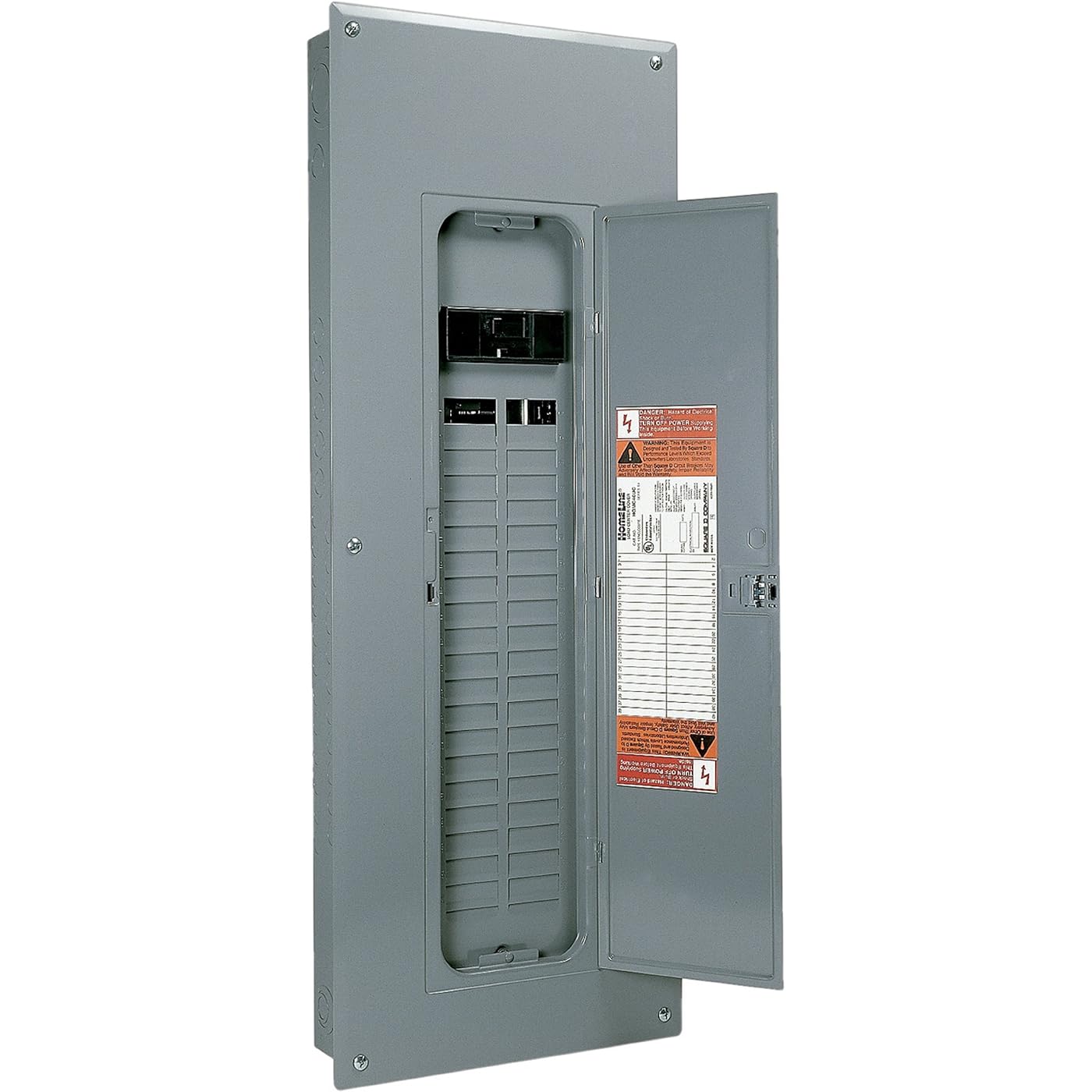

SQ D HOM40M200C; SQD LD-CNTR BOX&INT From the Manufacturer Single phase, 3 wire, split neutral, 40 spaces, 40 circuits, 120/240 Volts ac. 10,000 AIR factory installed main breaker, QOM2 main frame size. 3 different mounting locations for ground bar, use No.PK23GTA bar sold separately. Rugged bus bar, slot/squaredrive screws. Straight in main design. Tangential main service knockouts. Rotate entire device 180 degrees for bottom feed. 4 - 250 kcmil main wire. Gray baked-on enamel finish. U.L. Listed.
Brand: Square D by Schneider Electric
AC Adapter Current: 200 Amps
Material: Aluminum, Alloy Steel
Number Of Circuits: 40
Phase Type: Single Phase
Manufacturer: Square D by Schneider Electric
Part Number: HOM40M200C
Item Weight: 34.7 pounds
Product Dimensions: 5 x 10 x 8 inches
Item model number: HOM40M200C
Is Discontinued By Manufacturer: Yes
Color: Black
Material: Aluminum, Alloy Steel
Amperage Capacity: 200 Amps
Item Package Quantity: 1
Included Components: SQDHOM40M200C
Batteries Required?: No
Warranty Description: 1 year manufacturer
Date First Available: September 9, 2006
