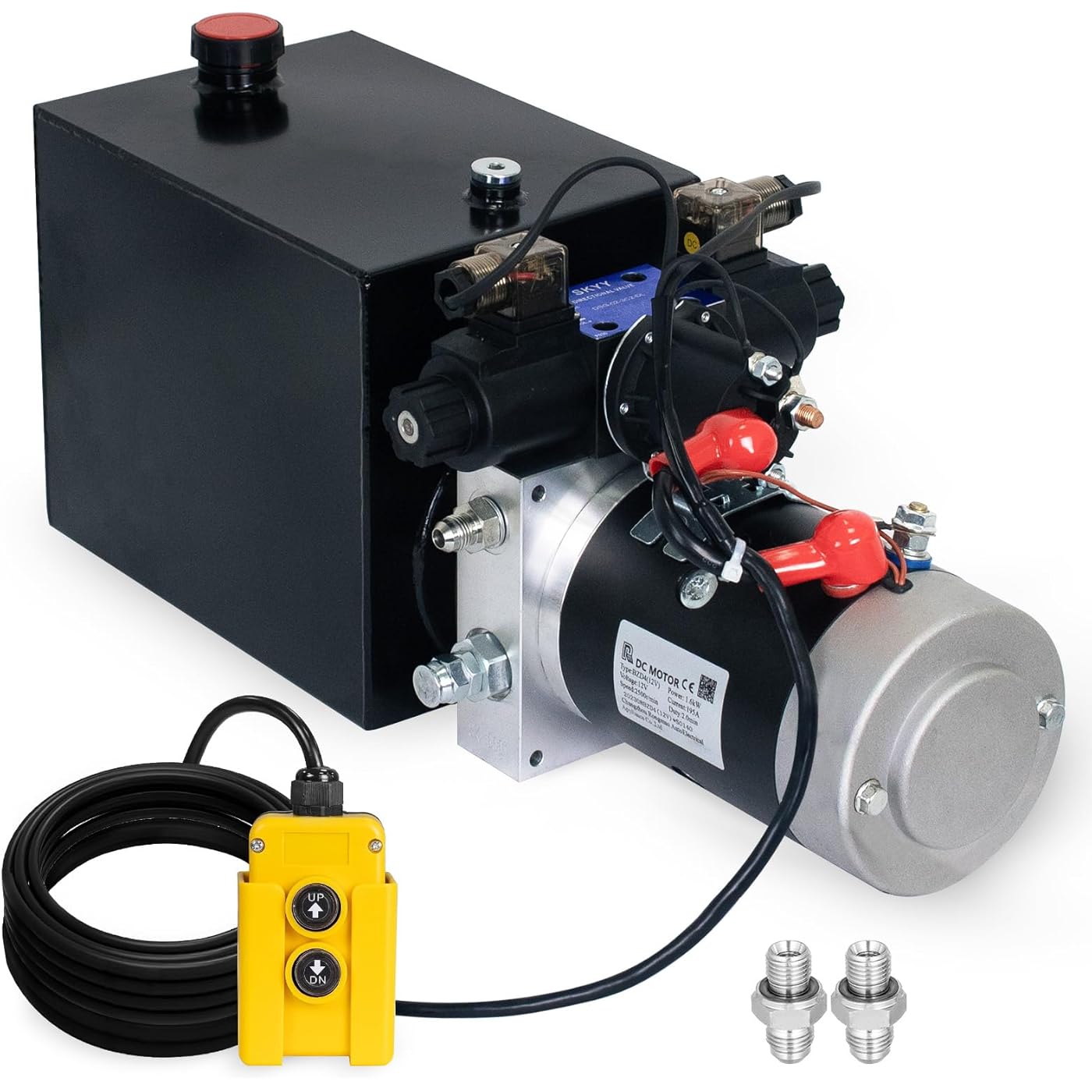

Hydraulic Pump 12V Dump Trailer Pump 8 Quart Hydraulic Power Units Electric Hydraulic Pump for Dump Trailer and DIY Hydraulic Systems(8 Quart Double Acting)

    • Based on 666 reviews
Condition: New
Checking for product changes
$259.99 Why this price?

Buy Now, Pay Later

As low as $43.33 / mo
  • – 6-month term
  • – No impact on credit
  • – Instant approval decision
  • – Secure and straightforward checkout

Ready to go? Add this product to your cart and select a plan during checkout. Payment plans are offered through our trusted finance partners Klarna, PayTomorrow, Affirm, Afterpay, Apple Pay, and PayPal. No-credit-needed leasing options through Acima may also be available at checkout.

Learn more about financing & leasing here.

Selected Option

Free shipping on this product

This item is eligible for return within 30 days of receipt

To qualify for a full refund, items must be returned in their original, unused condition. If an item is returned in a used, damaged, or materially different state, you may be granted a partial refund.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

Availability: Only 2 left in stock, order soon!
Fulfilled by Amazon
Arrives Wednesday, Dec 25
Order within 6 hours and 15 minutes
Available payment plans shown during checkout

Size Name: 8 Quart Double


Features

  • One Force Lifts a Thousand PoundsThe hydraulic pump is equipped with a 12V DC motor (rated at 1.6KW) and an 8 quart/8 liter oil tank. The maximum pressure at the outlet can reach 3200PSI/22MPa with your double-acting cylinder can easily lift at least 5 tons of weight.
  • Double Acting Hydraulic Power UnitsThis double-acting hydraulic pump must be used with a double-acting cylinder. The hydraulic pump will have an outlet and return port when controlling your cylinder up and down (for up: A2 for outlet and A1 for return; for down: A2 for return and A1 for outlet), so your cylinder must also have two ports to work.
  • The King of Cost PerformanceThis brand new hydraulic pump is perfect for replacing your dump trailer pump, and you get a great performing hydraulic power unit for half the cost of a dump truck pump store. And it can also be used as a power unit for other hydraulic systems such as garden tractors, forklifts, stackers, small or medium-sized lifting platforms, etc.
  • Easy to UseThis hydraulic power unit can be used directly with the controller (included) after connecting your cylinder with the oil pipe (not included) and connecting the 12V DC power supply (not included) according to the instructions. The interface type of the oil port is (9/16")SAE#6, and the suitable hydraulic oil viscosity range is 22-46mm2/s.
  • Friendly ServiceThis product provides 30 days quality assurance, if there are any quality problems can be unconditionally replaced. Please leave us a message if you have any questions during use.

Brand: DC HOUSE


Color: Silver-black


Material: Stainless Steel


Style: Above Ground


Product Dimensions: 19"L x 7.1"W x 7.1"H


Power Source: Battery Powered


Item Weight: 31.3 Pounds


Maximum Flow Rate: 2.1 Milliliters Per Second


Maximum Lifting Height: 15 Feet


Voltage: 12 Volts


Brand: ‎DC HOUSE


Color: ‎Silver-black


Material: ‎Stainless Steel


Style: ‎Above Ground


Product Dimensions: ‎19"L x 7.1"W x 7.1"H


Power Source: ‎Battery Powered


Item Weight: ‎31.3 Pounds


Maximum Flow Rate: ‎2.1 Milliliters Per Second


Maximum Lifting Height: ‎15 Feet


Voltage: ‎12 Volts


Manufacturer: ‎‎Fisters


Part Number: ‎L11020101005-1


Item Weight: ‎31.3 pounds


Item model number: ‎L12t1217YYDLDY8-1


Is Discontinued By Manufacturer: ‎No


Size: ‎8 Quart Double


Item Package Quantity: ‎1


Included Components: ‎1pc Dump Trailer Remote Control Switch


Batteries Included?: ‎No


Batteries Required?: ‎Yes


Warranty Description: ‎1 year manufacturer


Date First Available: March 17, 2016


Frequently asked questions

If you place your order now, the estimated arrival date for this product is: Wednesday, Dec 25

Yes, absolutely! You may return this product for a full refund within 30 days of receiving it.

To initiate a return, please visit our Returns Center.

View our full returns policy here.

  • Klarna Financing
  • Affirm Pay in 4
  • Affirm Financing
  • Afterpay Financing
  • PayTomorrow Financing
  • Financing through Apple Pay
Leasing options through Acima may also be available during checkout.

Learn more about financing & leasing here.

Similar Products

Top Amazon Reviews

    • Works
Size Name: 6 Quart Double
Housing ports are 1/4-19 BSPP British threaded
Reviewed in the United States on September 14, 2023 by max muse
    • Good product
Size Name: 6 Quart Double
Fit well work good
Reviewed in the United States on July 7, 2023 by Russ
    • Works Well
Size Name: 4 Quart Double
Product works well, after reading some of the reviews i had concern but i received instructions with pump and two types of fittings. BTW the British threads that several users complained about are available at hydraulic stores there are several near me but the Custom Hydraulic people were top notch in mating up what i needed. The seller indicates it can be used in a vertical mounting position which the reviews said no. I have mine vertical and it works well, As far as wiring it is very simple red or positive to motor relay and black or ground to motor. The nuts were actually left loose to make it more obvious. Only negative so far is the down position does not have a check valve and in my application i need to hold at both ends of cylinder. Easy fix though a $65 2 way solenoid valve wired to be open during pump operation solves the issue. Would be nice to add some flow control but in this price range not happening. You can add flow control external if needed. Overall functional and cost effective for converting over and much cheaper and quicker than electric actuator ... show more
Reviewed in the United States on July 16, 2020 by Jlester
    • no wiring instructions
Size Name: 6 Quart Double
does anyone have a correct wiring diagram, the solenoid when I connect hot wire to the right post activates the pump when connected without using switch, when connected to left post it doesn't do anything even with switch. so, I'm needing the switch diagram and battery diagram. thanks, in advance.
Reviewed in the United States on October 5, 2023 by Shawn
    • I am happy with the unit overall
Size Name: 4 Quart Double
I am happy with the unit overall. The hydraulic fittings are British standard, which is fine if you happen to live in England. If you want SAE, pull the fittings and replace with JIC, works great. One problem I am having is in going down mode my lift table falls like a rock and don't understand how to fix it? Everyone mentioning NO INSTRUCTIONS makes sense, all they have to do is post them online, easy right?. Ken I wanted to update my comments. The unit has a check valve on the pressure port. Take out the hose fitting the check valve will turn out counterclockwise with a straight screwdriver. This is a pressure activated check valve that must be set by the manufacturer for about 10000 lbs. This valve allows the hydraulic fluid to flow out at high volume, but going down or the fluid returning pushes the plunger closed slowing the descent of the hydraulic ram. I modified the check valve for my application, I have a lift table which will lift between 500-1500 lbs. This check valve is ideal because the more weight I have on the lift table the slower it descends, it is pressure activated. It works perfectly. ... show more
Reviewed in the United States on December 7, 2017 by Ken Lockwood
    • Need a lift? Going to work for it though!
Size Name: 8 Quart Double
Well having same issue as some of the others. No manual or instructions for hooking up. Electrical is pretty much the same as other pump assemblies, just a minor difference. It took me a bit to figure out how and where to attach 12 volt pos and the ground. The hydraulic connections were a pain in the butt. If your going to use for a dump trailer you're going to need to run to a hydraulic store to get this plumbed. Not the standard fittings for dump trailers. I had to take pump and old fittings to a Parker Store for help in getting plumbed. Some instructions would be extremely helpful! Definitely not a quick simple swap. Update: 4/06/2017 I have since installed and operated pump. If they decide to post/send Instructions that would help. I will update this post and rating. Had issue with dropping too fast under power and not holding in any up position. So I switched the hydraulic lines and it seemed to have solved the dropping issue. It is holding bed up now. Does raise dump bed smoothly but a bit slower than old pump. There might be a way to solve this, but without instructions who knows. It will get a lot of use quickly so if any issues I will update post again. ... show more
Reviewed in the United States on April 1, 2017 by GSD
    • We ordered the wrong pump.
Size Name: 8 Quart Double
We ordered the wrong pump, so it was not installed in our application. It appeared to be good quality and likely would have worked well in another application.
Reviewed in the United States on August 2, 2023 by DALE LASHBROOK
    • Very well-made hydraulic pump
Size Name: 10 Quart Double
The pump was exactly what I expected. It also was very well packed so not to encounter any damage.
Reviewed in the United States on April 12, 2023 by Lawrence Dickson
